Dock Construction - STATIONARY HARDWARE
All stationary dock hardware is 1/8" (nominal) hot-dip galvanized steel with 7/16" holes for 3/8" carriage bolts.
Engineered for strength, durability and simplicity.
DOCK SYSTEM BASICS
- The Dock Edge hardware system is designed for use with 1-1/2" thick lumber (minimum width 6")
- All hardware is mounted with carriage bolts.
- Always use backer plates or other piece of hardware when bolting through wood along with lock washers. This will eliminate the bolt pulling into or through the wood. This will allow the nuts to become loose and fall off
- Proper distances between the pipes is critical. Use the leg brace holders (DE93105F and DE87107F) to support the length of the dock. Ensure pipe distance is not more than 72" between pipes
- Use a piano hinge or other arrangement for decking boards over anchor chain corners for easy access for adjustment

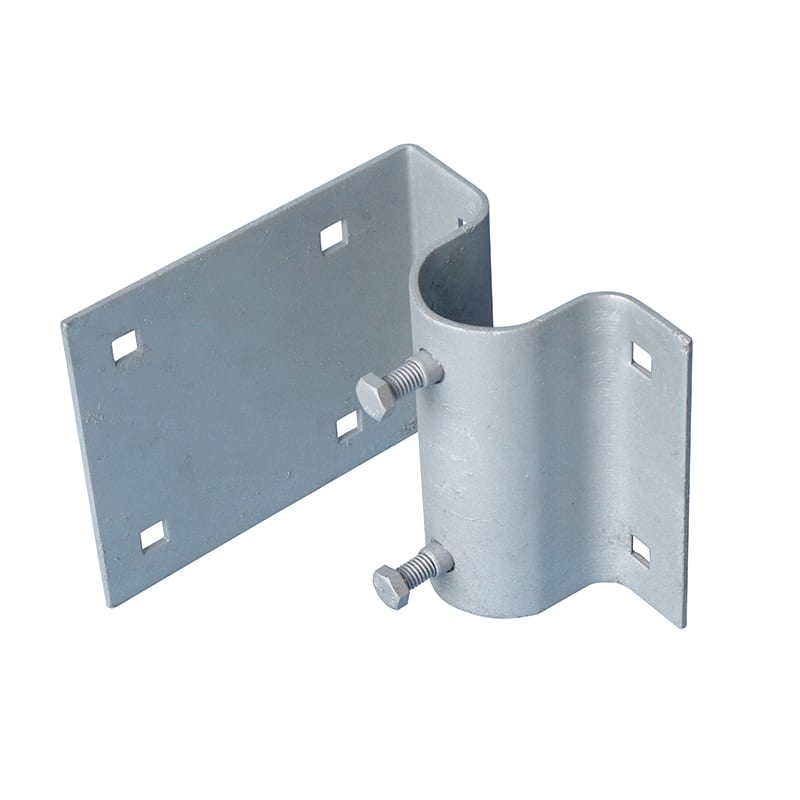

Corner Leg Holder, Galvanized (DE86100F)

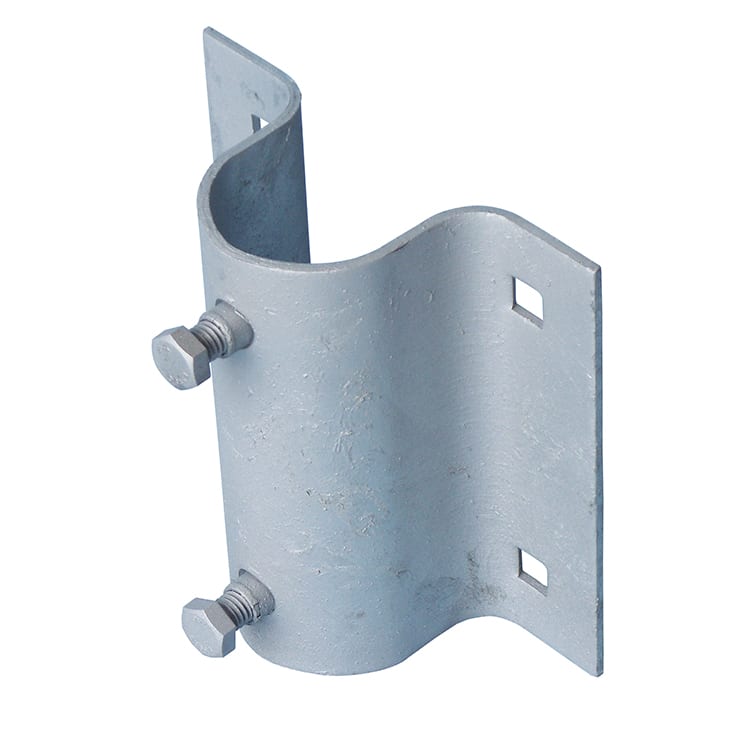

Side Leg Holder, Galvanized (DE86101F)

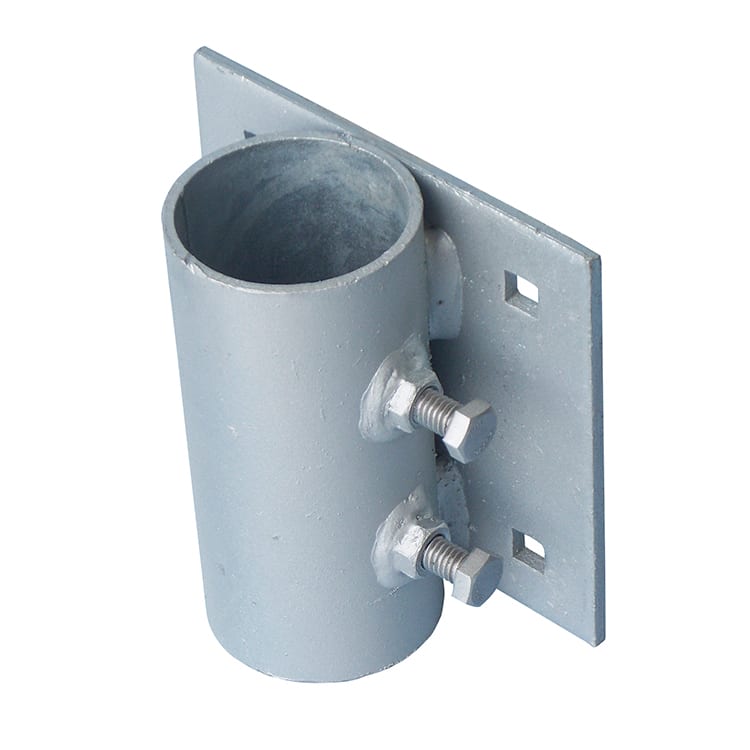

Side Leg Pipe Holder, HD, Galvanized (DE99003F)

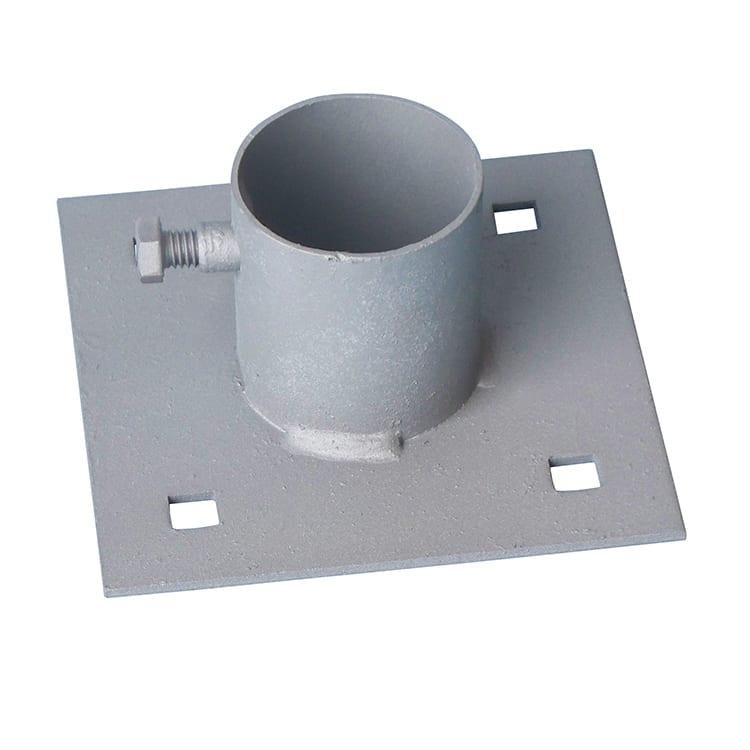

Base Plate, Galvanized (DE86102F)

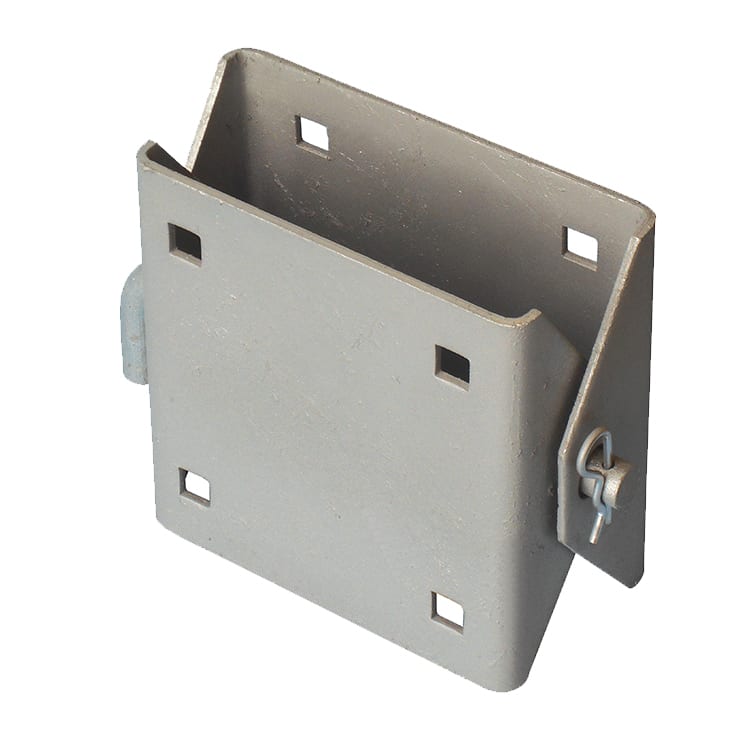

Connector Hinge, Galvanized (DE86103F)

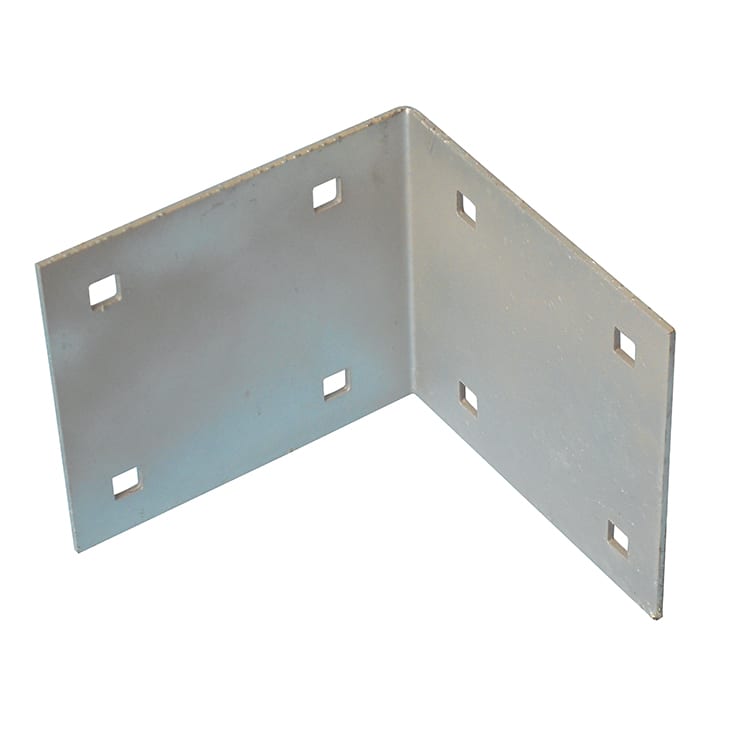

Corner Plate, Galvanized (DE86104F)

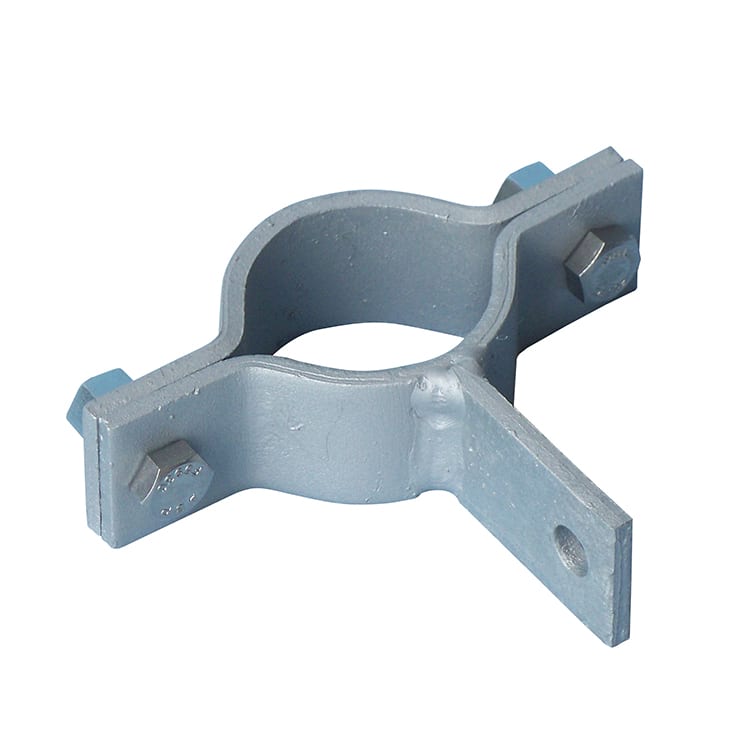

Corner Leg Brace Holder, Galvanized (DE87107F)

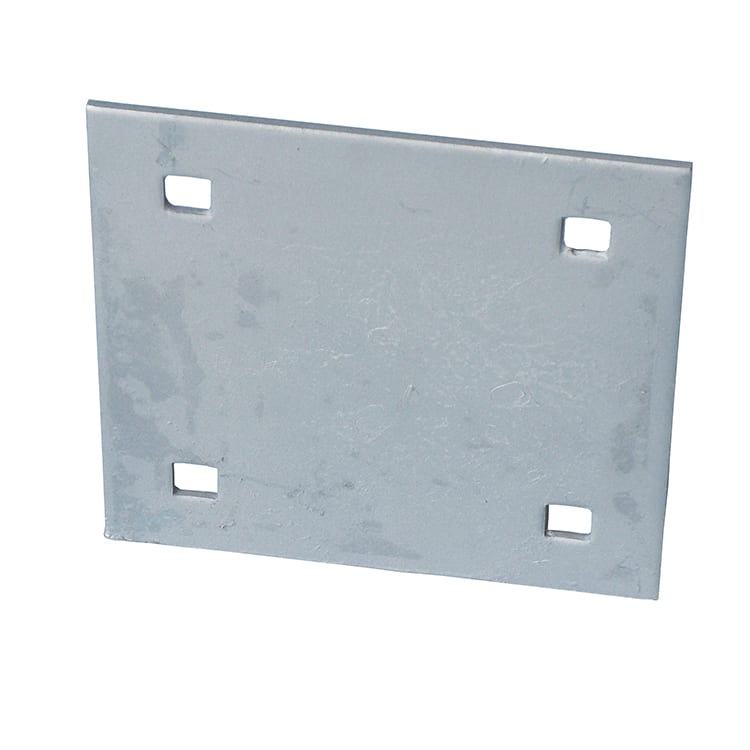

Backer Plate, Galvanized (DE87122F)

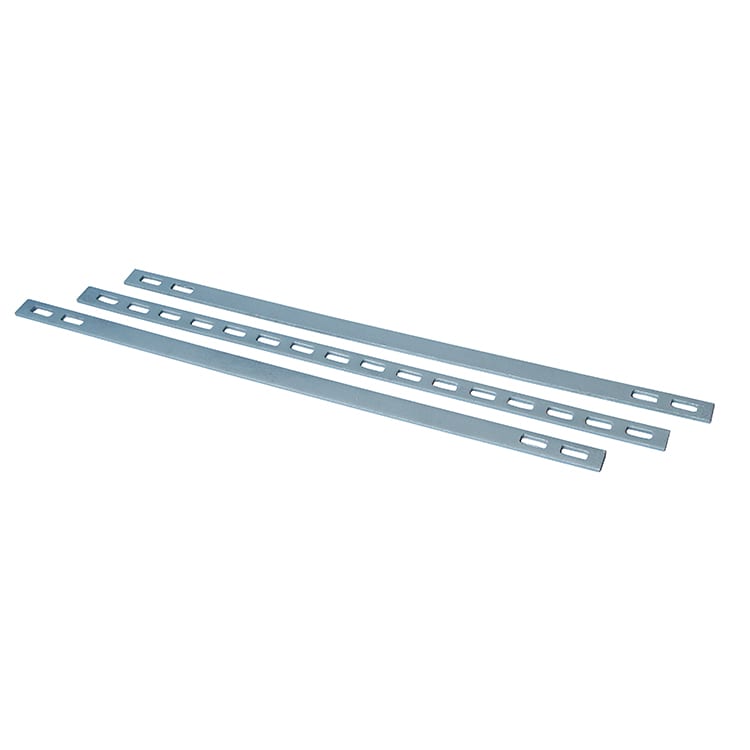

Leg Brace, (3 Pcs/Set), Galvanized (DE89101F)

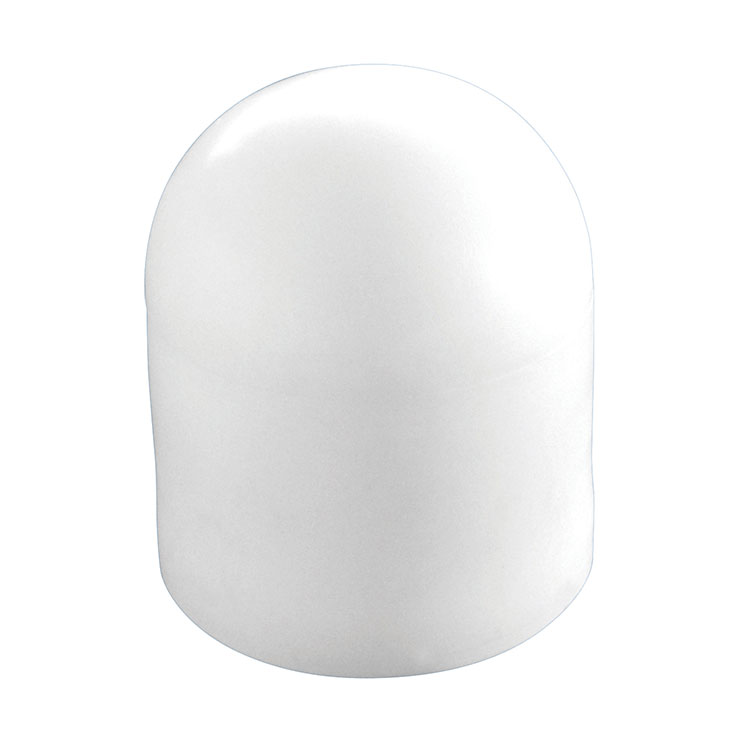

Pipe/Leg Cap, 1-7/8", PVC, White; 4Pcs/Bag (DE91111F)

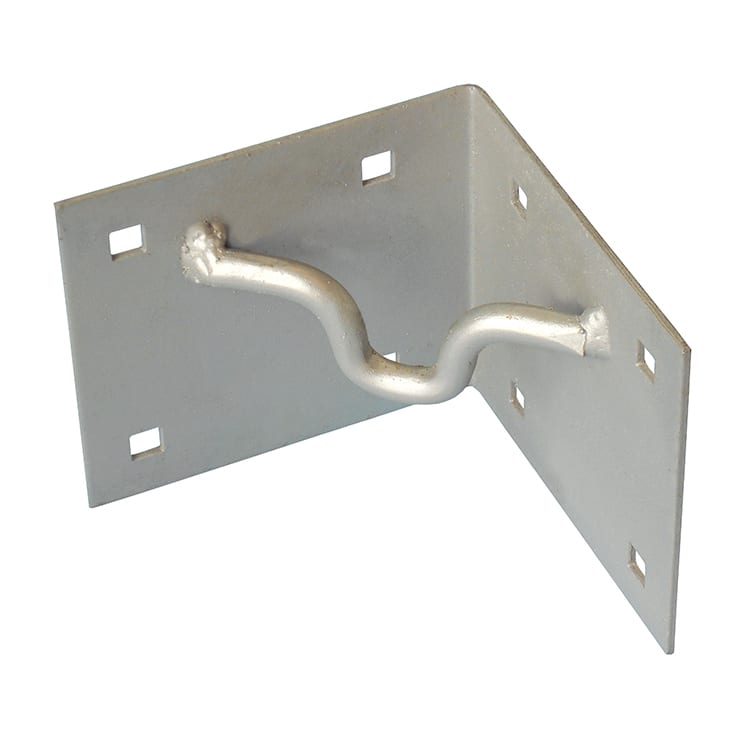

Corner Plate w/Anchor Tie Down Bar, Galvanized (DE91116F)
Leg Brace Holder, In-Line, (1Pc/Bag), Galvanized (DE93105F)
Leg Pipe, 1-7/8", Galvalume, 10' (DE93110F)
Leg Pipe, 1-7/8", Galvalume, 6'8" (DE93168F)

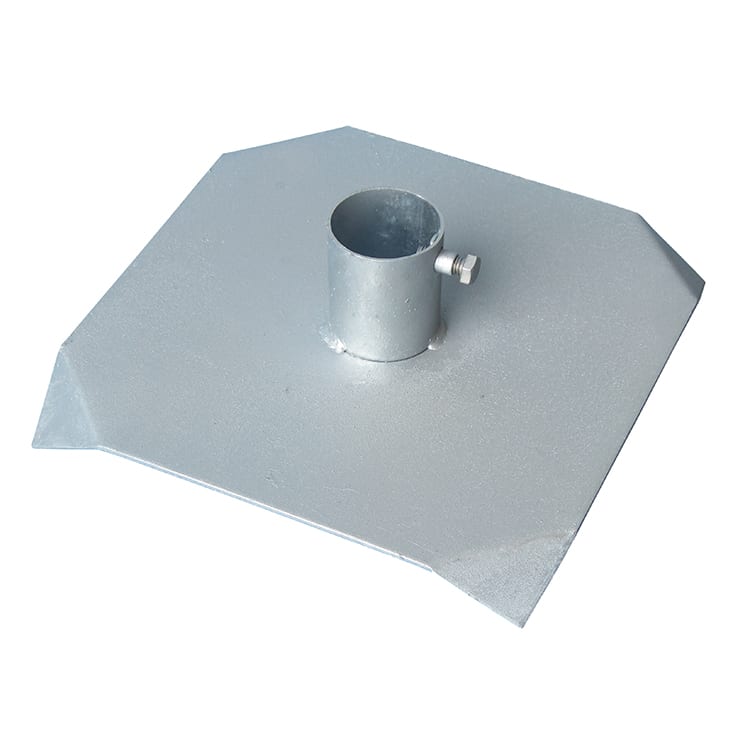

Bottom Pad, Galvanized (DE94102F)

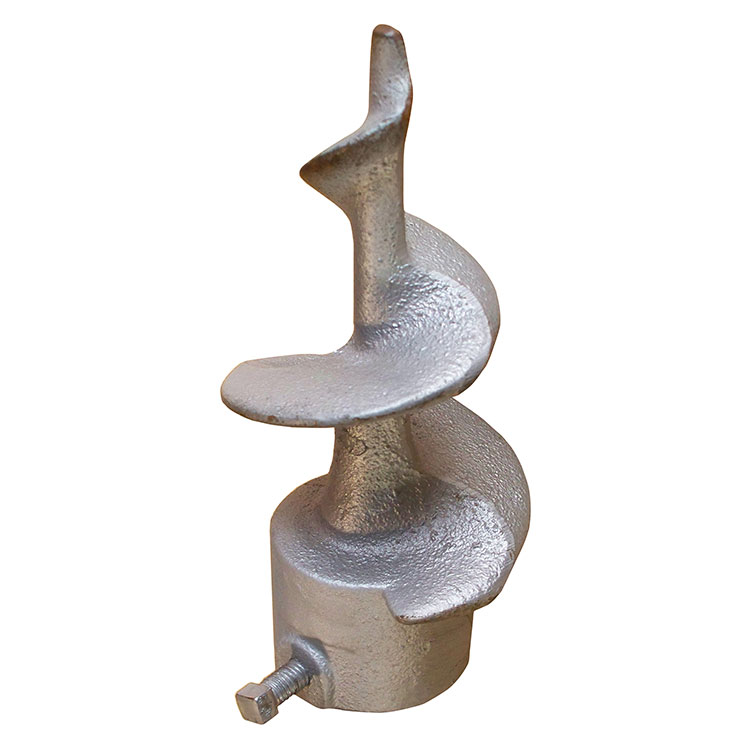

Auger,Leg Pipe,Female,Fits up to 2"OD Pipe, Galvanized (DE94200F)

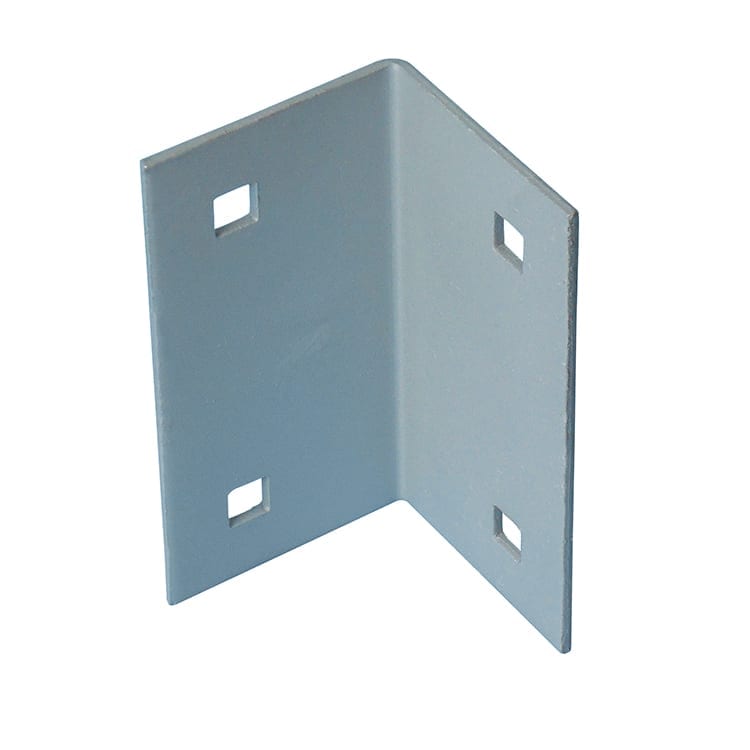

Corner Bracket, Inside Joist, Galvanized (DE95122F)

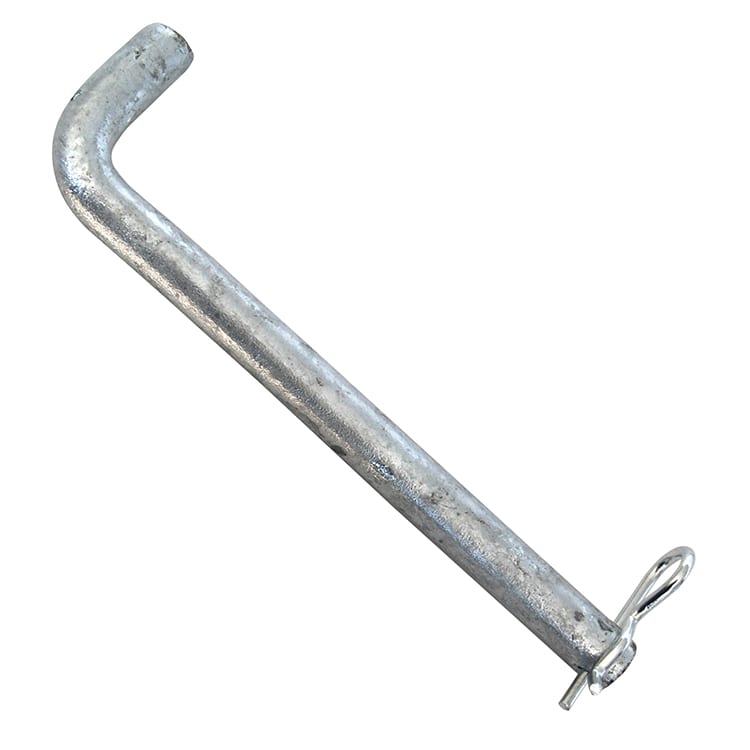

Pin, 6-3/4" Long, 1/2" Rod, for DE86103F (DE97103F)

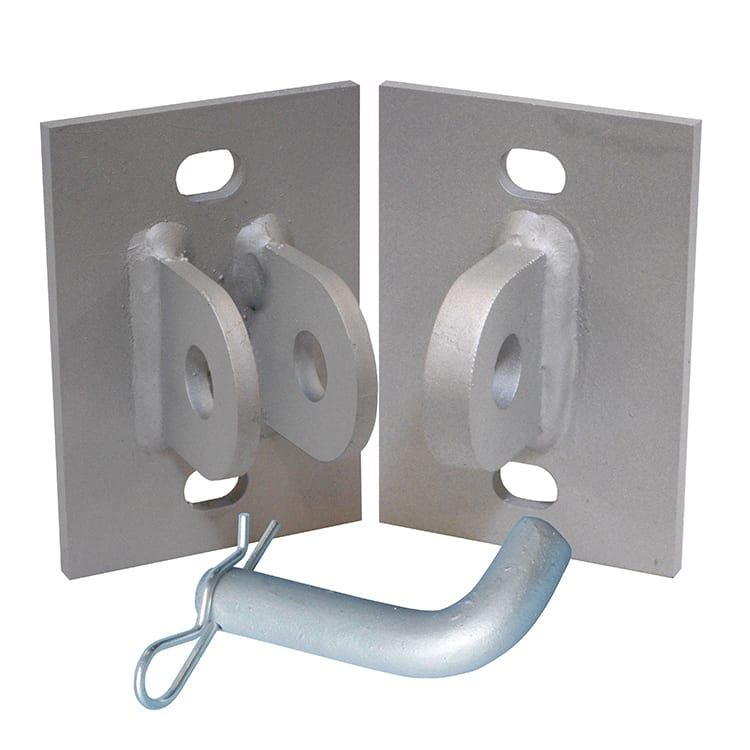

Connector Hinge Kit "T" Style (DE86105F)

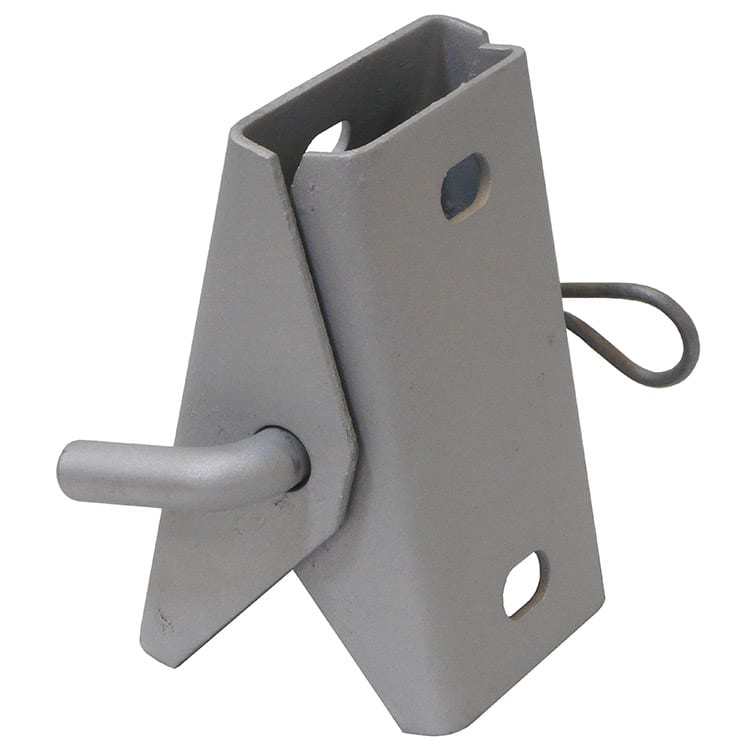

Connector Hinge (DE86106F)

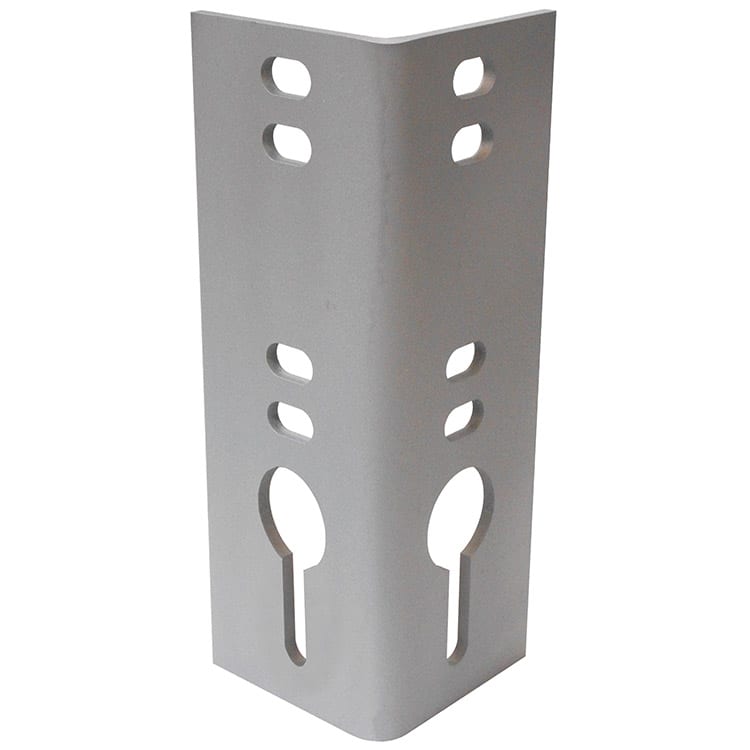

Anchor Chain Corner (DE91119F)

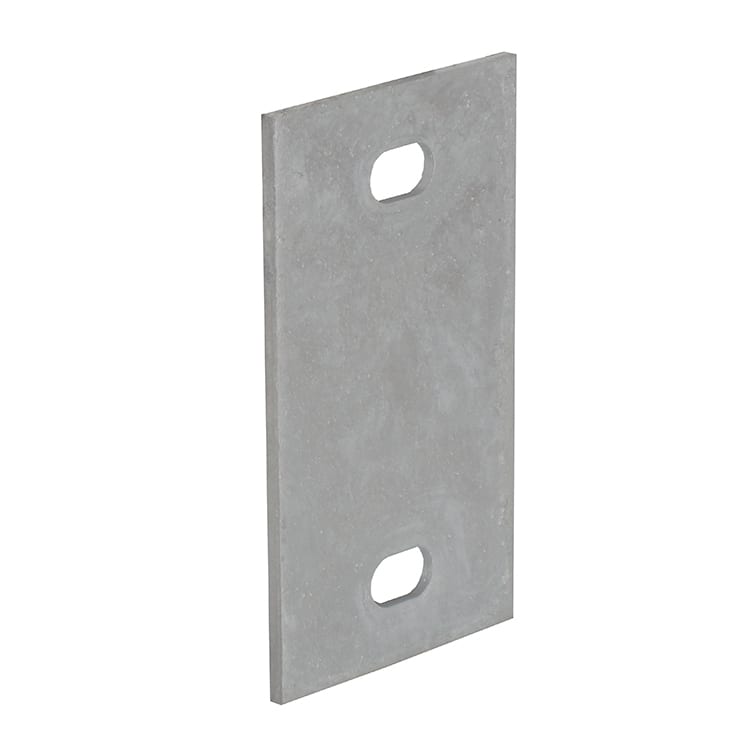

Washer Plate (DE95123F)
