In-Lite | In-Lite Spot Lighting

More Lighting

in-lite Spot lighting

Big Scope narrow spotlight installed lighting up garden walkway.

Big Scope Narrow 12V - Outdoor spotlight - 14 metre light distribution

The BIG SCOPE NARROW creates a focused beam of light for up to 12 meters.  This LED spotlight can be used to illuminate tall trees or to highlight elements from a greater distance

The EASY-LOCK is supplied as standard with this luminaire. The cable length on this luminaire is 60 cm.

  • Produces a narrow, focused light
  • Designed for illuminating trees up to 14 meters
  • Height adjustable with accessories

The width of the light beam created by the SCOPE and BIG SCOPE NARROW is the same. The BIG SCOPE NARROW, however, shines twice as far.

Installation advice:3 BIG SCOPE NARROW several meters away from the trunk, aimed at the top

Installation Instructions:

PDF Image icon Big Scope Narrow 12V spot light, installation guide

Install in soft ground using the included ground stake or on a hard surface with the separately available base plate.

Big Scope narrow 12v spot light, package contents
Included, In the Box:
  • 1x EASY LOCK
  • 60 cm Fixture cable
  • Ground pin
  • 1x Nylon plug
  • 1x Screw
  • 1x Torx wrench
  • 1x Cable plug

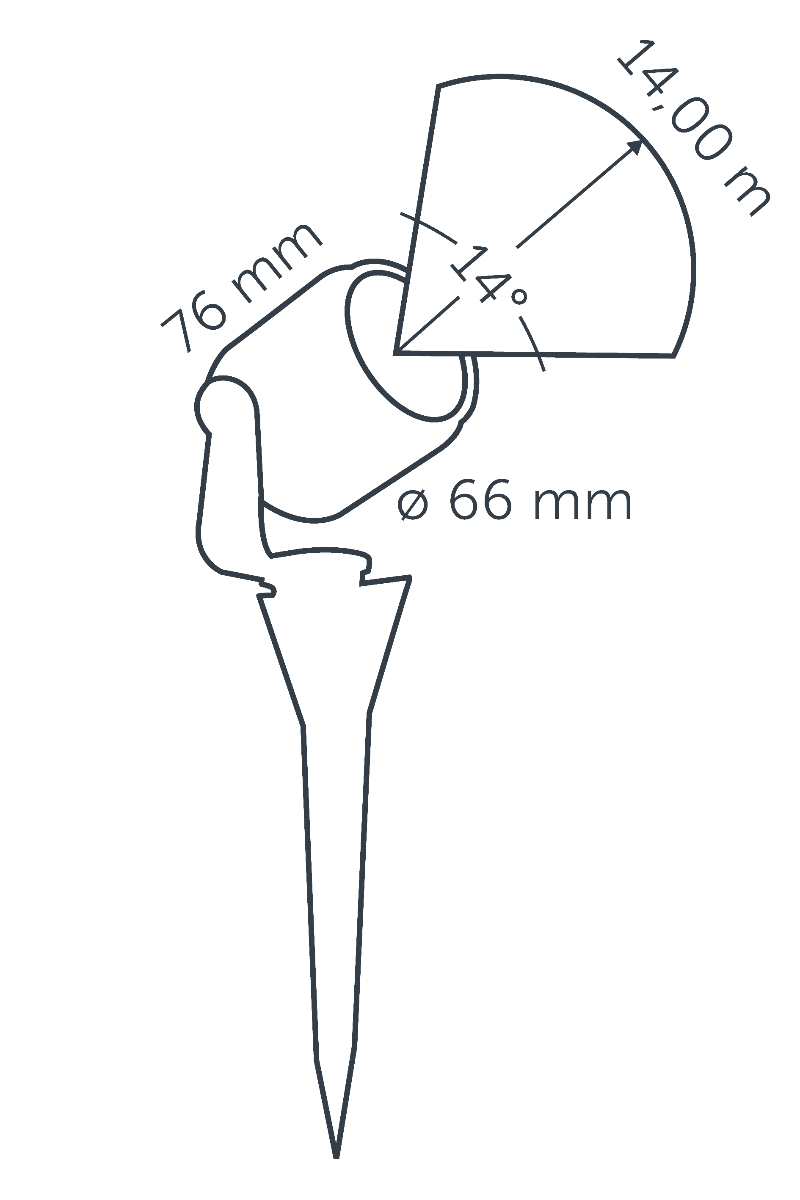

diagram of big scope narrow 12v spot light projection
Big Scope 12V back view of light
Installed Big Scope narrow 12V illuminating large tree

Specifications

Height 76 mm | 2.99 in
Diamenter 66 mm | 2.6 in
Dimmable Yes
Housing Aluminum
Ring/Cover plate Aluminum
Voltage 12 V
Application Tree, Roof, Hedge
Power 5 W
Energy label F
Electric potential 7,9 VA
Light source LED
Burn time 25000
Light angle 14°
Light direction Adjustable
Lighting reach 14m | 45.93 ft
Light color Warm white
Color temperature 3100 K
Net luminous flux 444 lm
Luminous Efficacy 89 lm/W
IP-class 67
CRI 92
Processing Soil
