in-lite Spot lighting

Scope ceiling spotlight in ceiling

Scope Ceiling 12V

This small but powerful ceiling spot is specially designed for outdoor use, such as in an overhang or pergola.

The EASY-LOCK is supplied as standard with this luminaire. The cable length on this luminaire is 60 cm.

  • Produces a wide, attractive light
  • Designed for illuminating a pergola or overhang
  • Available in two sizes

The special KILLFLASH 2 with honeycomb structure ensures that the focused light is less glaring, making this spot pleasant to look at.

Installation advice: A SCOPE CEILING every 1½ to 2 meters

Installation Instructions:

PDF Image iconScope Ceiling 12V spot light, installation guide

Installation using the installation materials provided.

Scope Ceiling 12v spot light, package contents
Included, In the Box:
  • 1x EASY LOCK
  • 60 cm Fixture cable
  • 2x Nylon plug
  • 2x Screw

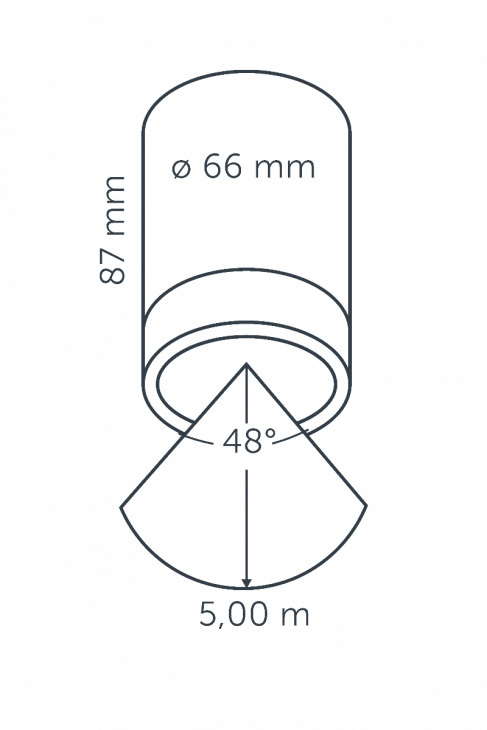

diagram of the scope ceiling spot light projection
Scope ceiling 12V
Scope ceiling 12V lens detail

Specifications

Height 87 mm | 3.43 in
Diameter 66 mm | 2.6 in
Housing Aluminum
Ring/Cover plate Aluminum
Voltage 12V
Application Canopy, Pergola
Power 3 W
Energy label F
Electric potential 4.8 VA
Light source LED
Burn time 25000
Light angle 48°
Light direction Downwards
Lighting reach 5 m | 16.41 ft
Light color Warm white
Color temperature 3100 K
Net luminous flux 271 lm
Luminous Efficacy 90 lm/W
IP-class 67
CRI 91
