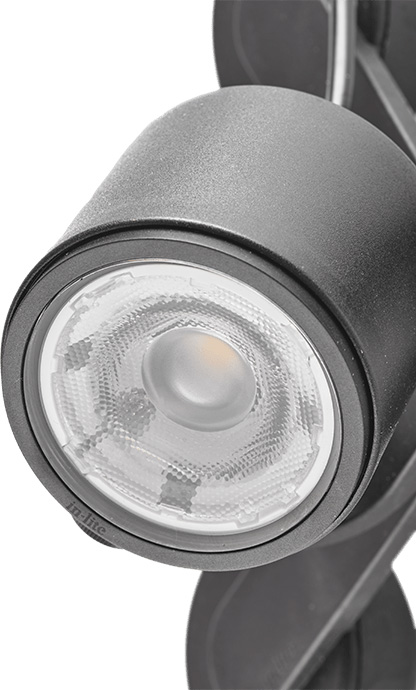

The new SUB 12V Black underwater spotlight has been fully updated. Like the other in-lite SCOPE outdoor spotlights, the SUB now also features the modern in-lite design style.The EASY-LOCK is supplied as standard with this luminaire.
The cable length on this luminaire is 10 meter.
The new SUB 12V Black is fitted with a 3W (4.7 VA) light source. This yields an increase in the light output by 96 lm (currently 293 lm) and a wider light angle. The result is an even more impressive lighting effect, both under and above water.
Installation Instructions:
The SUB is delivered fully assembled and includes a 10 meter cable. This length ensures that it is always possible to connect the SUB in the pond to the 12V ground cable in the yard outside the water using the Easy-Lock.
| Height | 58 mm | 2.28 in |
| Diameter | 64 mm | 2.5197 in |
| Length | 150 mm | 5.9 in |
| Width | 150 mm | 5.9 in |
| Colour | Black |
| Dimmable | no |
| Housing | Glassfibre reinforced nylon |
| Voltage | 12 V |
| Application | Pond |
| Power | 3 W |
| Energy label | F |
| Light angle | 48° |
| Light direction | Adjustable |
| Lighting reach | 5 m | 16 ft |
| Light color | Warm white |
| Color temperature | N/A |
| Net luminous flux | 293 lm |
| Luminous Efficacy | 97 lm/W |
| Luminous intensity [Cd] | 375.1 |
| VA Value | 4.7 |
