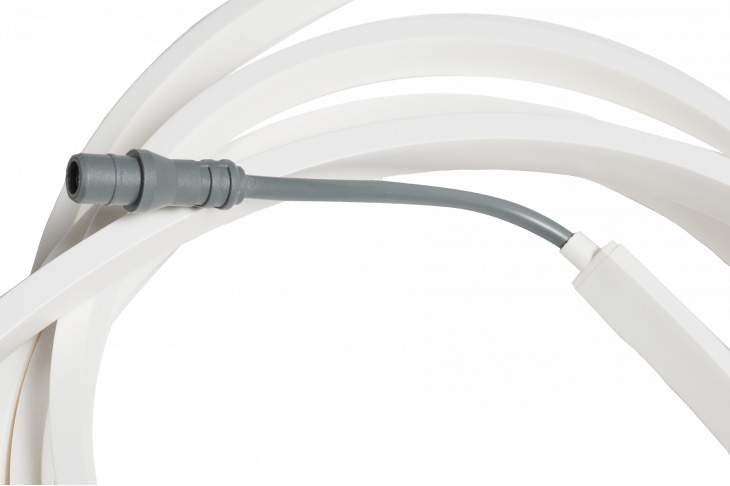

EVO FLEX 12V is a flexible LED strip with a length of one, two or three meters.
The EASY-LOCK is supplied as standard with this luminaire. The cable length on this luminaire is 60 cm.
Available in 1, 2, or 3M. The EVO FLEX is a flexible, high-quality LED light strip. It produces an even beam of light to highlight any edge, under-cap, riser, etc. This artistic yet functional fixture comes in 3 sizes (1, 2, or 3M) and you can customize its length and shape to fit into any design.
Installation Instructions:
Evo Flex, installation guideIf the LED strip is cut, the fixture can be made watertight using the included translucent mini-waterlock cap. For optimal functioning of the EVO FLEX (1, 2, 3), it is advisable to connect the fixture to a 12/2 ground cable of no longer than 40 meters.
Available Sizes:
Evo Flex 1 LED strip 1m - 9,9VA
Evo Flex 2 LED strip 2m - 15,7VA
Evo Flex 3 LED strip 3m - 20,20VA
EVO FLEX 1, 2 or 3

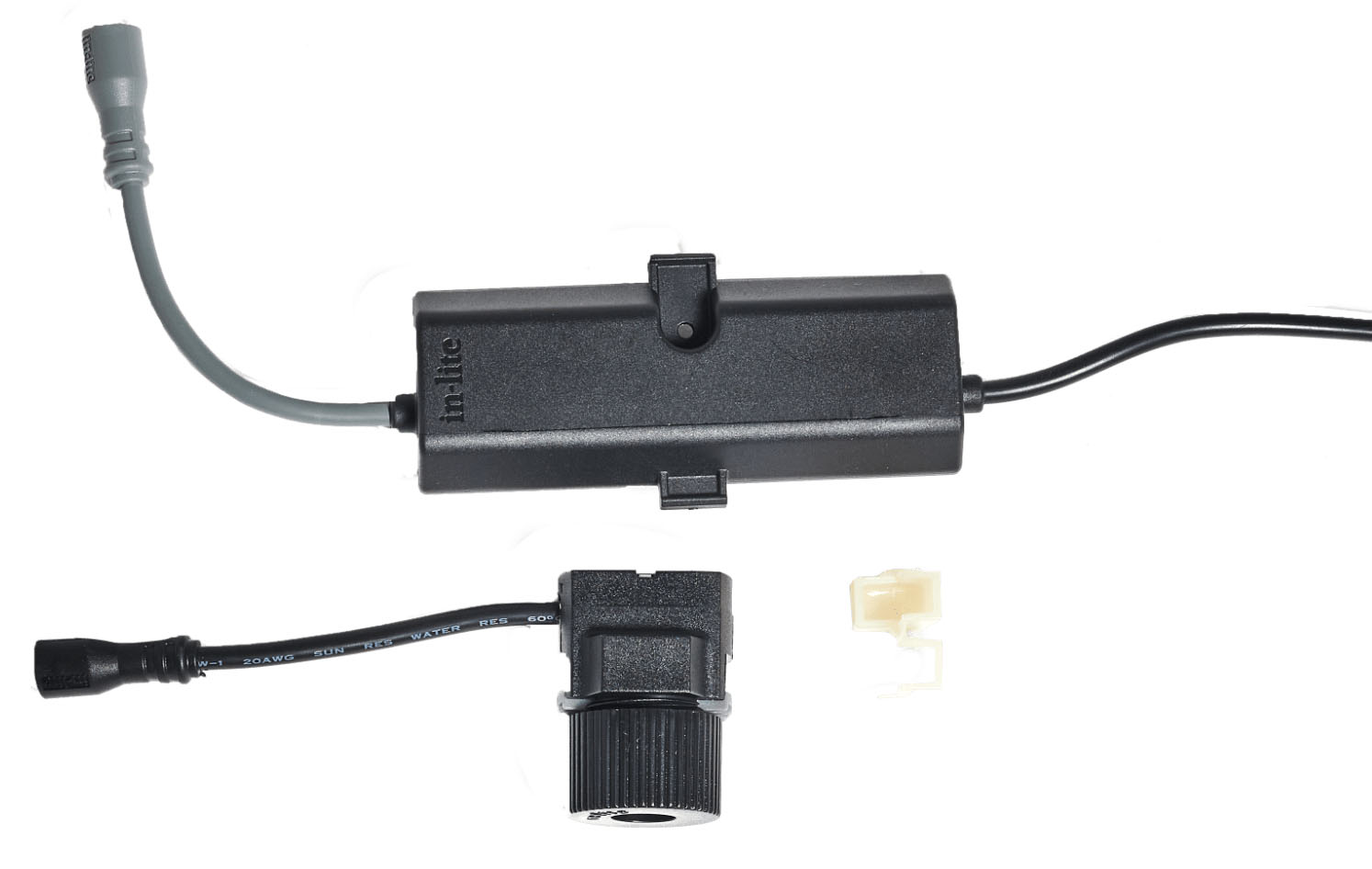

SMART DRIVER 1 and EASY LOCK

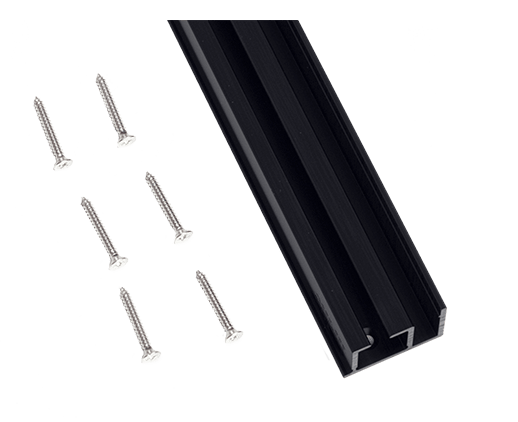

EVO FLEX PROFILE
| Width | 6.5mm | 0.24 in |
| Height | 6,5 mm | 0.47in |
| Housing Material | PU |
| Dimmable | no |
| Voltage | 12V |
| Application | Overhang, Deck, Stair |
| Processing | Concrete, Natural stone, Wood |
| Energy label | G |
| Light source | LED |
| Burn time | 25000 |
| Light direction | Downwards |
| Lighting reach | 0,5 m | 0 ft |
| Light color | Warm white |
| Color temperature | 3000K |
| Net Luminous Flux | 229lm |
| IP-class | 68 |
| CRI | 86 |
