Traditional 36" | 914 mm Rail Panel
Includes I-Support
SIZE:
32.5 in x 6 ft | 826 mm x 1829 mm
(69.5 in | 1765 mm long)
Matte White (#59132691)
Black Sand (#59132698)
SIZE:
32.5 in x 8 ft | 826 mm x 2438 mm
(93.5 in | 2375 mm long)
Matte White (#59132931)
Black Sand (#59132938)
Traditional 42" | 1067 mm Rail Panel
Includes I-Support
SIZE:
40 in x 6 ft | 1016 mm x 1829 mm
(69.5 in | 1765 mm long)
Matte White (#59140691)
Black Sand (#59140698)
SIZE:
40 in x 8 ft | 826 mm x 2438 mm
(93.5 in | 2375 mm long)
Matte White (#59140931)
Black Sand (#59140938)
Traditional Adjustable Stair Rail Panel
Includes I-Support
SIZE:
32.5 in x 6 ft | 826 mm x 1829 mm
(72 in | 1829 mm long)
Matte White (#59232691)
Black Sand (#59232698)
SIZE:
32.5 in x 8 ft | 826 mm x 2438 mm
(96 in | 2438 mm long)
Matte White (#59232931)
Black Sand (#59232938)
Traditional 48 in | 1219 mm Rail Panel
Includes I-Support
SIZE:
44.5 in x 6 ft | 1130 mm x 1829 mm
(69.5 in | 1765 mm long)
Matte White (#59144691)
Black Sand (#59144698)
SIZE:
44.5 in x 8 ft | 1130 mm x 2438 mm
(93.5 in | 2438 mm long)
Matte White (#59144931)
Black Sand (#59144938)
2 in | 51 mm Post Cap
- Matte White (#59500021)
- Black Sand (#59500028)
3 in | 76 mm Blank Post
- Matte White (#59500031)
- Black Sand (#59500048)
2 in | 51 mm Blank Post
NO BRACKETS ATTACHED
Post Base Cover Included.
SIZE:36 in | 915 mm
- Matte White (#59336021)
- Black Sand (#59336028)
- Matte White (#59342021)
- Black Sand (#59342028)
- Matte White (#59351021)
- Black Sand (#59351028)
3 in | 76 mm Blank Post
NO BRACKETS ATTACHED
Post Base Cover Included.
SIZE:39.5 in | 1003 mm
- Matte White (#59339031)
- Black Sand (#59339038)
- Matte White (#59345031)
- Black Sand (#59345038)
- Matte White (#59351031)
- Black Sand (#59351038)
3 in | 76 mm Blank Fascia Post
NO BRACKETS OR BASE ATTACHED
Fascia post can be used for Proud Post applications
SIZE:55 in | 1397 mm
- Black Sand (#59355038)
Pre-Bracketed Line Posts
Brackets attached to opposite faces
FOR THE 32.5 in | 825,5 mm Al13 home panels.
FINAL RAIL HEIGHT PANEL IS
36 in | 914,4 mm
Post Base Cover Included.
COLOUR: Black Sand
SIZE:
2 x 36 in | 50,8 x 914,4 mm (59336228)
3 x 39.5 in | 76,2 x 1003,3 mm (59339238)
Pre-Bracketed Corner Posts
Brackets attached to adjacent faces
FOR THE 32.5 in | 825,5 mm Al13 home panels.
FINAL RAIL HEIGHT PANEL IS
36 in | 914,4 mm
Post Base Cover Included.
COLOUR: Black Sand
SIZE:
2 x 36 in | 50,8 x 914,4 mm (59336128)
3 x 39.5 in | 76,2 x 1003,3 mm (59339138)

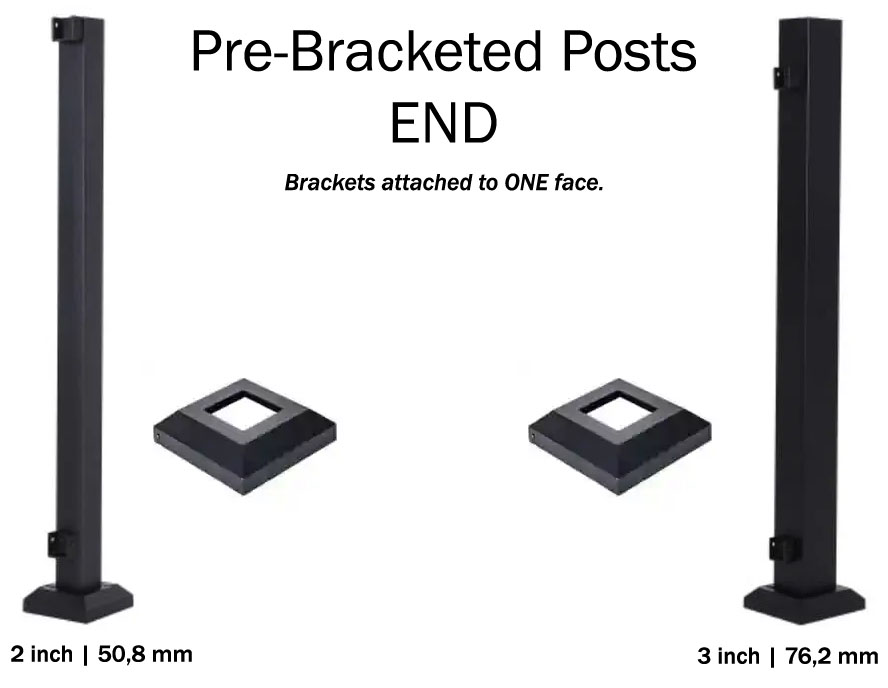

Pre-Bracketed End Posts
Brackets attached to one face
FOR THE 32.5 in | 825,5 mm Al13 home panels.
FINAL RAIL HEIGHT PANEL IS
36 in | 914,4 mm
Post Base Cover Included.
COLOUR: Black Sand
SIZE:
2 x 36 in | 50,8 x 914,4 mm (59336338)
3 x 39.5 in | 76,2 x 1003,3 mm (59339338)
Pre-Bracketed Line Posts
Brackets attached to opposite faces
FOR THE 40 in | 1016 mm Al13 home panels.
FINAL RAIL HEIGHT PANEL IS
42 in | 1066,8 mm
Post Base Cover Included.
SIZE:
2 x 42 in | 50,8 x 1066,8 mm
COLOUR: Black Sand (59342228)
SIZE: 3 x 45.5 in | 76,2 x 1155,7 mm
COLOUR: Black Sand (59345238)
COLOUR: Matte White (59345231)
Pre-Bracketed Corner Posts
Brackets attached to adjacent faces
FOR THE 40 in | 1016 mm Al13 home panels.
FINAL RAIL HEIGHT PANEL IS
42 in | 1066,8 mm
Post Base Cover Included.
SIZE:
2 x 42 in | 50,8 x 1066,8 mm
COLOUR: Black Sand (59342128)
SIZE: 3 x 45.5 in | 76,2 x 1155,7 mm
COLOUR: Black Sand (59345138)
COLOUR: Matte White (59345131)
Pre-Bracketed End Posts
Brackets attached to one face
FOR THE 40 in | 1016 mm Al13 home panels.
FINAL RAIL HEIGHT PANEL IS
42 in | 1066,8 mm
Post Base Cover Included.
SIZE:
2 x 42 in | 50,8 x 1066,8 mm
COLOUR: Black Sand (59342338)
SIZE: 3 x 45.5 in | 76,2 x 1155,7 mm
COLOUR: Black Sand (59345338)
COLOUR: Matte White (59345331)
Post Base Cover
for use with 2 in | 55 mm post
SIZE:
4.75 in | 121 mm
COLOUR:
- Matte White (#59504751)
- Black Sand (#59504758)
Post Base Cover
for use with 3 in | 76 mm post
SIZE:
5.75 in | 146 mm
COLOUR:
- Matte White (#59505751)
- Black Sand (#51500038)
Post Anchor Base Plate
for use with 2 in | 51 mm post
SIZE:
4.75 in | 121 mm (59504750)
Post Anchor Base Plate
for use with 3 in | 76 mm post
SIZE:
5.75 in | 146 mm (51505050)
Straight Bracket
bag of 4; includes 13 metal screws
COLOUR:
- Matte White (#59500211)
- Black Sand (#59500218)
Simplified Stair Bracket
bag of 4; includes 13 metal screws
COLOUR:
- Matte White (#59505061)
- Black Sand (#59505068)
Angle Bracket
bag of 4; includes 13 metal screws
COLOUR:
- Matte White (#59500311)
- Black Sand (#59500318)
3.5 in | 51 mm
Aluminum Rail I-Support
used with traditional and cable panels
32.5 in | 826 mm rail
Includes installation screw
COLOUR:
- Matte White (#59532091)
- Black Sand (#59532098)
2 in | 51 mm
Aluminum Rail I-Support
used with traditional and cable panels
42 in | 1067 mm rail
Includes installation screw
COLOUR:
- Matte White (#59540091)
- Black Sand (#59540098)
Aluminum Rail Adjustable I-Support
(for stairs)
used with traditional and cable panels
Includes installation screw
COLOUR:
- Matte White (#59550091)
- Black Sand (#59550098)
3 in | 76 mm STRAIGHT
Fascia Mount Bracket
with hex head bolt covers
COLOUR:
- Black Sand (#53503008)
3 in | 76 mm OUTSIDE CORNER
Fascia Mount Bracket
with hex head bolt covers
COLOUR:
- Black Sand (#50503018)
3 in | 76 mm INSIDE CORNER
Fascia Mount Bracket
with hex head bolt covers
COLOUR:
- Black Sand (#53503028)
ROUND Accent Top Rail
traditional
SIZE:
6 ft | 152 mm (Actual 69.89 in | 1775 mm)
- Matte White (#59500721)
- Black Sand (#59500728)
SIZE:
8 ft | 203 mm (Actual 93.89 in | 2385 mm)
- Matte White (#59500961)
- Black Sand (#59500968)
ROUND Accent Top Rail
for stairs
SIZE:
6 ft | 152 mm (Actual 79.375 in | 2016 mm)
- Matte White (#59500791)
- Black Sand (#59500798)
SIZE:
8 ft | 203 mm (Actual 100.875 in | 2562 mm)
- Matte White (#59501011)
- Black Sand (#59501018)
FLAT Accent Top Rail
traditional
SIZE:
6 ft | 152 mm (Actual 69.89 in | 1775 mm)
- Matte White (#59501721)
- Black Sand (#59501728)
SIZE:
8 ft | 203 mm (Actual 93.89 in | 2385 mm)
- Matte White (#59501961)
- Black Sand (#59501968)
FLAT Accent Top Rail
for stairs
SIZE:
6 ft | 152 mm (Actual 79.375 in | 2016 mm)
- Matte White (#59501731)
- Black Sand (#59501738)
SIZE:
8 ft | 203 mm (Actual 100.875 in | 2562 mm)
- Matte White (#59511011)
- Black Sand (#59511018)
LINE (OTP) Round
Accent Top Rail Splice - 2 in |76 mm
COLOUR:
- Matte White (#59500161)
- Black Sand (#59500168)
CORNER (OTP) Round
Accent Top Rail Splice - 2 in |76 mm
COLOUR:
- Matte - 2 in |76 mmWhite (#59500171)
- Black Sand (#59500178)
END (OTP) Round
Accent Top Rail Splice - 2 in |76 mm
COLOUR:
- Mat - 2 in |76 mmte White (#59500181)
- Black Sand (#59500188)
STAIR (OTP) Round
Accent Top Rail Splice - 2 in |76 mm
COLOUR:
- Matte- in |76 mm White (#59500151)
- Black Sand (#59500158)
LINE (OTP) Flat
Accent Top Rail Splice - 2 in |76 mm
COLOUR:
- Matte White (#59500121)
- Black Sand (#59500128)
CORNER (OTP) Flat
Accent Top Rail Splice - 2 in |76 mm
COLOUR:
- Matte White (#59500131)
- Black Sand (#59500138)
END (OTP) Flat
Accent Top Rail Splice - 2 in |76 mm
COLOUR:
- Matte White (#59500141)
- Black Sand (#59500148)
STAIR (OTP) Flat
Accent Top Rail Splice - 2 in |76 mm
COLOUR:
- Matte White (#59500111)
- Black Sand (#59500118)
LINE (OTP) Round
Accent Top Rail Splice - 2 in |76 mm
135° angle
COLOUR:
- Matte White (#59500191)
- Black Sand (#59500198)
LINE (OTP) Flat
Accent Top Rail Splice - 2 in |76 mm
135° angle
COLOUR:
- Matte White (#59500411)
- Black Sand (#59500418)
Aluminum Rail Cap
BAG OF 4
Includes wood screws
COLOUR:
- Matte White (#59500071)
- Black Sand (#59500078)
Used to mount wood, composite or vinyl board as drink rail or decorative top rail.
28 in | 711 mm spacing recommended.
