Aluminum Post with Cap & Skirt
2.5” X 2.5”
ACTUAL DIMENSIONS
- 37” Post - Horizontal: 2.5” x 2.5” x 37” (63 mm x 63 mm x 939 mm)
- 43” Post - Horizontal: 2.5” x 2.5” x 43” (63 mm x 63 mm x 109 cm)
- 53” Post - Stair (cut-to-length): 2.5” x 2.5” x 53” (63mm x 63 mm x 134 cm)
Aluminum posts can only be used with the Trex Signature® line

Aluminum Crossover Post
2.5” X 2.5”
ACTUAL DIMENSIONS
- 36” Crossover Post - Horizontal (includes crossover bracket): 2.5” x 2.5” x 36” (63 mm x 63 mm x 914mm)
- 42” Crossover Post - Horizontal (includes crossover bracket): 2.5” x 2.5” x 42” (63 mm x 63 mm x 106 cm)
Aluminum posts can only be used with the Trex Signature® line

Aluminum Joist Mount Post
ACTUAL EXTERNAL DIMENSIONS
OF INSERT: 3.75” X 3.75” X 7”
- 63” Aluminum post (cut-to-length)
- Aluminum inserts with set screws
- 1/2” HG Bolts, washers and nuts (not pictured)
- Bolt spacing template
For use with 4x4 Composite post sleeve. Use with all Trex railing heights

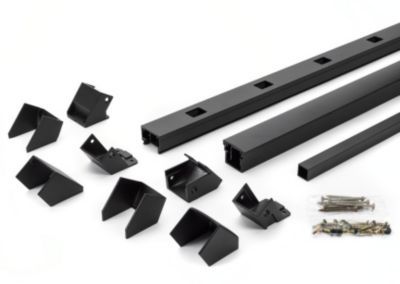

3. Stair-rail kit w/round or square balusters: top rail, bottom rail, round or square balusters, mounting & support hardware
INCLUDES
2.5” X 2.5”
ACTUAL DIMENSIONS
- Top Rail
- Bottom Rail
- Square Balusters
- Mounting & Support Hardware
ACTUAL DIMENSIONS
- 6’ x 36”: 72” x 36” (182 cm x 914mm)
- 8’ x 36”: 96” x 36” (243 cm x 914mm)
- 6’ x 42”: 72” x 42” (182 cm x 106 cm)
- 8’ x 42”: 96” x 42” (243 cm x 106 cm)
Available in 6’ or 8’ lengths and 36” or 42” Rail height for horizontal and stair applications.

3. Horizontal - rail kit w/round or square balusters: top rail, bottom rail, square or round balusters, mounting & support hardware
INCLUDES
- Top Rail
- Bottom Rail
- Round Balusters
- Mounting & Support Hardware
ACTUAL DIMENSIONS
- 6’ x 36”: 72” x 36” (182 cm x 914 mm)
- 8’ x 36”: 96” x 36” (243 cm x 914 mm)
- 6’ x 42”: 72” x 42” (182 cm x 106 cm)
- 8’ x 42”: 96” x 42” (243 cm x 106 cm)
Available in 6’ or 8’ lengths and 36” or 42” Rail height for horizontal and stair applications.

3. Trex signature® railing panel
INCLUDES
- 1 Pallet of Trex Signature® Railing Panels (20 panels)
- Trex Signature® Railing Mounting Hardware must be ordered separately.
ACTUAL DIMENSIONS
- 6’ x 36”: 72” x 36” (182 cm x 914 mm)
- 8’ x 36”: 96” x 36” (243 cm x 914 mm)
- 6’ x 42”: 72” x 42” (182 cm x 106 cm)
- 8’ x 42”: 96” x 42” (243 cm x 106 cm)
Available in 6’ or 8’ lengths and 36” or 42” Rail height for horizontal applications. Only offered with square aluminum balusters.

Trex Signature® Glass Rail Kit*
INCLUDES
- Top and Bottom Rail
- Hardware and Bracket Pack
- Footblock
ACTUAL DIMENSIONS
- 6’ x 36” (72-in x 36-in (182 cm x 914 mm)) - Horizontal
Available with Charcoal Black or Classic White railing.
*Glass infill sold separately. Should be sourced locally.

Fixed Bracket 4-Pack, Horizontal
INCLUDES
- Qty (2) Fixed Top Rail Bracket and Cover-Horizontal
- Qty (2) Fixed Bottom Rail Bracket and Cover-Horizontal
- Qty (1) Fastener Pack

Fixed Bracket 4-Pack, Stair
INCLUDES
- Qty (1) Fixed Top Rail Bracket 1 and Cover-Stair
- Qty (1) Fixed Top Rail Bracket 2 and Cover-Stair
- Qty (1) Fixed Bottom Rail Bracket 1 and Cover-Stair
- Qty (1) Fixed Bottom Rail Bracket 2 and Cover-Stair
- Qty (1) Fastener Pack

Swivel Crossover Bracket Kit, Stair
INCLUDES
- Qty (1) Swivel Crossover Bracket-Stair
- Qty (2) Post to Bracket Fasteners

Swivel Bracket, Horizontal
INCLUDES
- Qty (1) Swivel Top Rail Bracket and Cover-Horizontal
- Qty (1) Swivel Bottom Rail Bracket and Cover-Horizontal
- Qty (2) Fastener Covers
- Qty (1) Fastener Pack

Swivel Bracket, Stair
INCLUDES
- Qty (1) Swivel Top Rail Bracket and Cover-Stair
- Qty (1) Swivel Bottom Rail Bracket and Cover-Stair
- Qty (2) Fastener Covers
- Qty (1) Fastener Pack

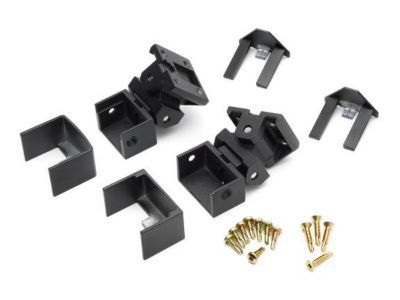

Compound Swivel Bracket Kit, Stair
INCLUDES
- Qty (1) Compound Swivel Top Rail Bracket and Cover-Stair
- Qty (1) Compound Swivel Bottom Rail Bracket and Cover-Stair
- Qty (2) Fastener Covers
- Qty (1) Fastener Pack

Aluminum Footblock
INCLUDES
- Qty (1) Footblock
- Qty (1) Footblock Anchor and fastener
