TREX Transcend Railing

TREX Transcend railing

Timeless Design That You Can Tailor
No other Trex railing line offers the freedom to mix and match infill and rails like Trex Transcend. As strong and sturdy as its namesake decking, Transcend puts every color combination within reach. Get style-specific or eliminate the guesswork with pre-designed kits.

This composite railing won’t rot, warp, peel or splinter (which trumps sanding row after row of wooden balusters any day), and it never needs painting or staining.

Rail colours are; left to right, Charcole-Black, Classic-White, Fire Pit, Gravel Path, Rope Swing, Tree House and Vintage Lantern

Railing available in Charcole-Black, Classic-White, Gravel Path, Rope Swing, Tree House and Vintage Lantern
- Fire Pit;
All railing & railing accessories in this color are While Quantities Last.

Consider curving your rails to mimic the sweeps of garden below. And entertainers, take note: wide, beverage-ready cocktail railing may just be the ideal choice for you.

MANUFACTURES WARRANTY - 25-year limited

In six matching colors, Transcend railing and decking are a flawless pair, inspiring both monochromatic and complementary designs all with the same high-performance, low-maintenance finish.

On railing posts. In stair risers. Along that shaded span of deck boards. Install deck lighting where you please to achieve the ambience you want.

Sleek aluminum gates are designed to blend seamlessly with Trex Railing, while offering an extra level of safety, strength and accessibility.

trex Transcend railing in charcoal-black

High Performance

  • Stands firm with a strong, sturdy look and feel
  • Built with the same incredible durability as Transcend decking-won’t rot, warp, peel or splinter
Trex transcend decking colour, Fire Pit with rail

Perennial Beauty

  • Modular components let you mix and match your customized look with any Trex railing line
  • Pairs seamlessly with Transcend decking…and just as beautifully with any other Trex decking line
TREX Transcend rail in charcoal black. With Island Mist stairs

Trex

  • Contains a minimum of 40% recycled material
  • Backed by the Trex 25-Year Limited Residential Warranty

Trex Transcend is either a 5-step or 3-step process.
Choose Trex post sleeves, caps and skirts (steps 1 & 2). Then choose each component separately for a custom design (steps 3-5).

Transcend also offers a simple, 3-step option if you choose a rail & baluster kit.

Transcend railing components diagram.jpg

Trex Select Components
1. Post Sleeve
2a. Post Sleeve Cap
2b. Post Sleeve Skirt
3a. Top Rail
4. Balusters
5. Accessory Infill Kit


transcend railing post-sleeve in colour tree house

1. 4" POST SLEEVE

4" X 4" X 39"/108"

ACTUAL EXTERNAL DIMENSIONS
  • 4.45" x 4.45" x 40" (113 mm x 113 mm x 101 cm)
  • 4.45" x 4.45" x 108" (113 mm x 113 mm x 274 cm)

Fits over 4"x4" Pressure-Treated Post

Trex transcend railing post sleeve in white

1. 6" POST SLEEVE

6" X 6" X 39"/108"

ACTUAL EXTERNAL DIMENSIONS
  • 5.5" x 5.5" x 39" (139 mm x 139 mm x 990 mm)
  • 5.5" x 5.5" x 108" (139 mm x 139 mm x 274 cm)

Hollow sleeve that fits over a solid, pressure-treated post or post mount

Fits over 4"x4" Pressure-Treated Post

Available in Classic White only.

TREX transcend railing post sleeve cap flat white

2a. FLAT POST SLEEVE CAP

ACTUAL EXTERNAL DIMENSIONS
  • 4" x 4": 4.55" x 4.55" (115 mm x 115 mm)
  • 6" x 6": 5.55" x 5.55" (140 mm x 140 mm)

12 per box. Cap topping each post is the decorative finish that also withstands the weather.

6" Available in Classic White only.

Trex transcend railing post sleeve skirt flat white

2b. POST SLEEVE SKIRT

4" X 4" X 39"/108"

ACTUAL EXTERNAL DIMENSIONS
  • 4" x 4": 4.55" x 4.55" (115 mm x 115 mm)
  • 6" x 6": 5.55" x 5.55" (140 mm x 140 mm))

12 per box. Finishing piece at the base of the post that covers any cuts where the decking and railing meet. Usually coordinates with the cap..

6" Available in Classic White only.

trex transcend railing kit classic-white composite
3. Composite Rail & Baluster Kit
INCLUDES

Crown Top Rail, Universal Bottom Rail, Square Balusters, Baluster Spacers, Adjustable Foot Block and Mounting Hardware

  • 6' x 36" Rail & Baluster Kit - Composite:
    • Horizontal - available in Classic White, Charcoal Black and Vintage Lantern
    • Stair - available in Classic White
  • 8' x 36" Rail & Baluster Kit - Composite:
    • Horizontal and Stair - available in Classic White, Charcoal Black and Vintage Lantern
ACTUAL DIMENSIONS

6' Rail: 67.5 in x 36 in (171 cm x 914 mm); 8' Rail: 91.5 in x 36 in (232 cm x 914 mm)

trex transcend railing kit classic-white aluminum
3. Aluminum Rail & Baluster Kit
INCLUDES

Crown Top Rail, Universal Bottom Rail, Round Aluminum Balusters, Baluster Spacers, Adjustable Foot Block and Mounting Hardware

  • 6' x 36" Rail & Baluster Kit - Aluminum:
    • Horizontal and Stair - available in Classic White, Charcoal Black and Vintage Lantern
  • 8' x 36" Rail & Baluster Kit - Aluminum:
    • Horizontal and Stair - available in Classic White, Charcoal Black and Vintage Lantern
ACTUAL DIMENSIONS

6' Rail: 67.5 in x 36 in (171 cm x 914 mm); 8' Rail: 91.5 in x 36 in (232 cm x 914 mm)

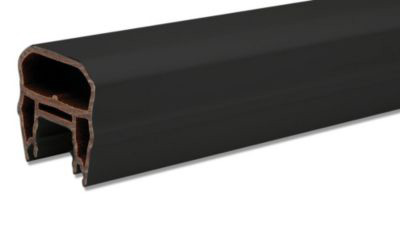

transcend railing top, black
3a. Crown Top Rail
ACTUAL LENGTH
  • 6' Rail: 67.5" (171 cm)
  • 8' Rail: 91.5" (232 cm)

Horizontal rail attached to the top of the balusters and the posts

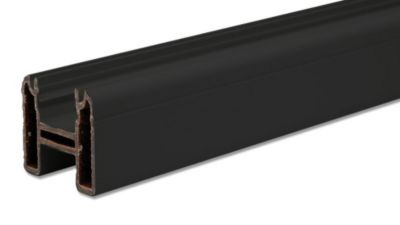

transcend railing bottom black
3a/3b. Transcend Universal Top/Bottom Rail
ACTUAL LENGTH
  • 6' Rail: 67.5" (171 cm)
  • 8' Rail: 91.5" (232 cm)

Horizontal rail attached to both the top and bottom of the balusters and the posts; the top rail portion serves as base for the installation of a deck board that acts as a cocktail rail

railing round aluminum baluster
4. Round Aluminum Baluster
ACTUAL DIMENSIONS
  • 36" Rail Height: .75" x 30.25" (19 mm x 768 mm)
  • 42" Rail Height: .75" x 36.25" (19 mm x 920 mm)

20 per pack Vertical rungs-sometimes called spindles-that fill the space between posts

trex square aluminum baluster
4. Square Aluminum Baluster

While Quantities Last
ACTUAL DIMENSIONS
  • 36" Rail Height: .75" x 30.25" (19 mm x 768 mm)
  • 42" Rail Height: .75" x 36.25" (19 mm x 920 mm)

20 per pack Vertical rungs-sometimes called spindles-that fill the space between posts

Square Baluster, example in colour - Rope Swing
4. Square Baluster
ACTUAL DIMENSIONS
  • 36" Rail Height: 1.418" x 1.418" x 30.375" (36 mm x 36 mm x 771 mm)
  • 42" Rail Height: 1.418" x 1.418" x 36.375" (36 mm x 36 mm x 923 mm)

16 per pack Vertical rungs-sometimes called spindles-that fill the space between posts

transcend railing artisan glass panel white
5. Glass Panel Accessory Kit
INCLUDES
  • 6' Rail: 67.5" (171 cm)

Glass panel mounting hardware; glass panel not included

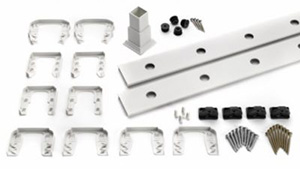

transcend accessory infill kit horizontal
5. Accessory Infill Kit
INCLUDES
  • 2 Baluster Spacers, Adjustable Foot Block, Mounting Hardware
ACTUAL LENGTHS
  • 6' Rail: 67.5" (171 cm); 8' Rail: 91.5" (232 cm)

Available in 6' and 8' lengths for square, colonial and round balusters; horizontal and stair applications.

Horizontal Mounting Hardware For Cut Rails
Horizontal Mounting Hardware For Cut Rails
INCLUDES
  • Qty (2) Crown Top Rail Gaskets -Horizontal
  • Qty (4) Universal Top/Bottom Rail Gaskets -Horizontal
  • Qty (4) RSB Rail Brackets
  • Qty (8) Rail to Bracket Fasteners -Horizontal
  • Qty (8) Rail to Post Fasteners
  • Qty (4) Screw Tip Covers

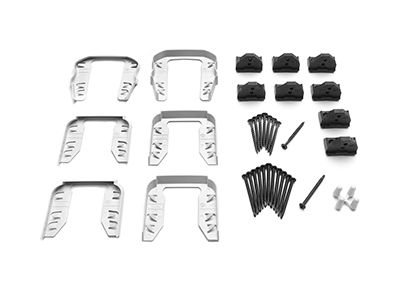

Stair Mounting Hardware For Cut Rails
Stair Mounting Hardware For Cut Rails
INCLUDES
  • Qty (1) Crown Top 1 Rail Gaskets -Stair
  • Qty (1) Crown Top 2 Rail Gaskets -Stair
  • Qty (2) Universal Top/Bottom 1 Rail Gaskets -Stair
  • Qty (2) Universal Top/Bottom 2 Rail Gaskets -Stair
  • Qty (8) RSB Rail Brackets
  • Qty (8) Rail to Bracket Fasteners - Stair
  • Qty (8) Rail to Post Fasteners
  • Qty (4) Screw Tip Covers
RSB Bracket Pack  - Horizontal
RSB Bracket Pack - Horizontal
INCLUDES
  • Qty (4) RSB Rail Brackets
  • Qty (8) Rail to Bracket Fasteners -Horizontal
  • Qty (8) Rail to Post Fasteners

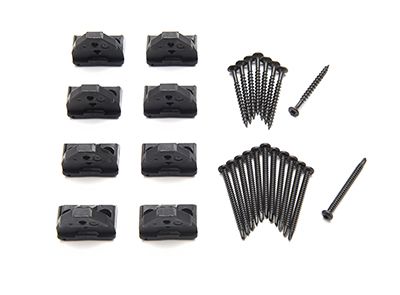

RSB Bracket Pack  - Stair
RSB Bracket Pack - Stair
INCLUDES
  • Qty (8) RSB Rail Brackets
  • Qty (8) Rail to Bracket Fasteners -Stair
  • Qty (8) Rail to Post Fasteners
0 Degree Rail Gasket Pack -Horizontal
0 Degree Rail Gasket Pack - Horizontal
INCLUDES
  • Qty (2) Crown Top Rail Gaskets -Horizontal
  • Qty (4) Universal Top/Bottom Rail Gaskets -Horizontal
