Perfect View Railing is manufactured in Canada
Perfect view railing - Rail
Example of slim square edge rail in position on glass. Rubber shim should be cut back to required rail size when installed. Example glass is positioned on spigots (one with cover plate removed to show leveling shims).
Top Rail Mounting (Caprail)
When you require a rail ontop of the glass edge.
Handrails are composed of high gauge 316 Stainless Steel alloy (corrosion resistant). All rail is available in stainless steel finish or stainless steel with a matte black finish. Rail requires end caps (sold seperatly).
Choose from round or square edge top rail. All rail comes with rubber shim.
Rubber shims are also sold seperately if additional is required.
Sizes & Styles
- Standard Square Edge: 1.57" (40mm), 19' lengths
- Narrow Square: 1" (25.4mm), 19' lengths
- Round: 1.67" (42.4mm), 19' lengths
round caprail 1.67" (42.4mm)
square narrow caprail 1" (25.4mm)
Additional Top Rail Connectors

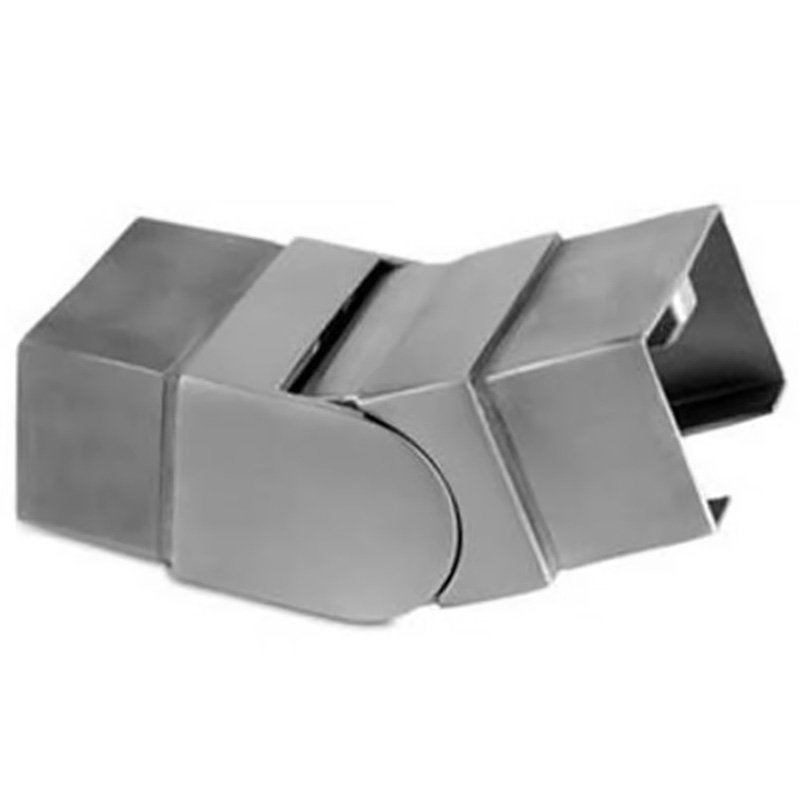

Adjustable upward - 40mm square Caprail
Adjustable downward - 40mm square Caprail
Fixed 90° Vertical - 40mm Square Caprail

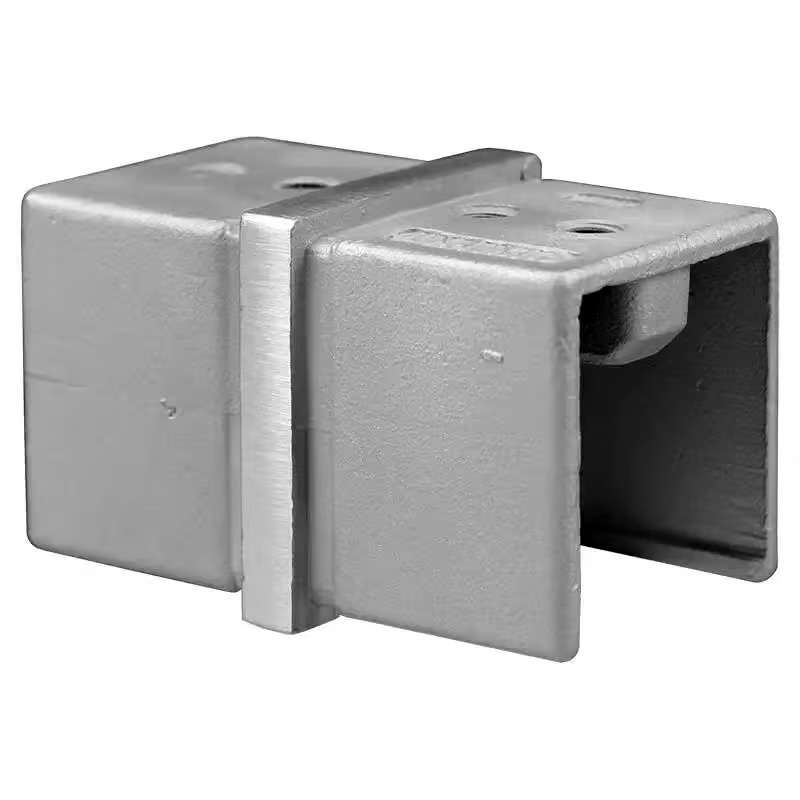

Fixed 180° - 40mm Square Caprail
Fixed 90° Horizontal - 40mm Square Caprail

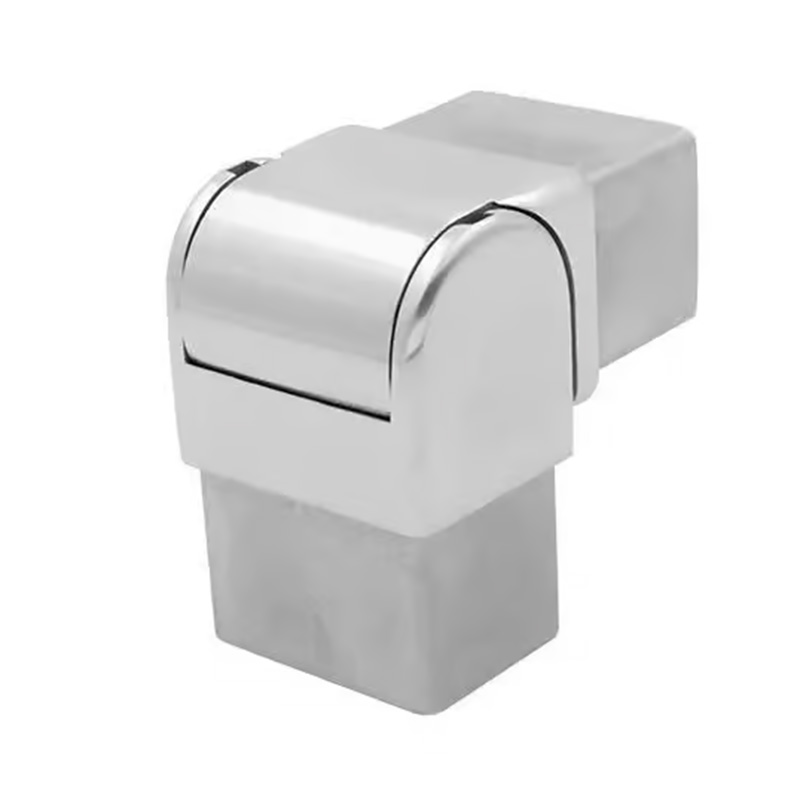

Adjustable 90° Vertical - 1x1" square Caprail

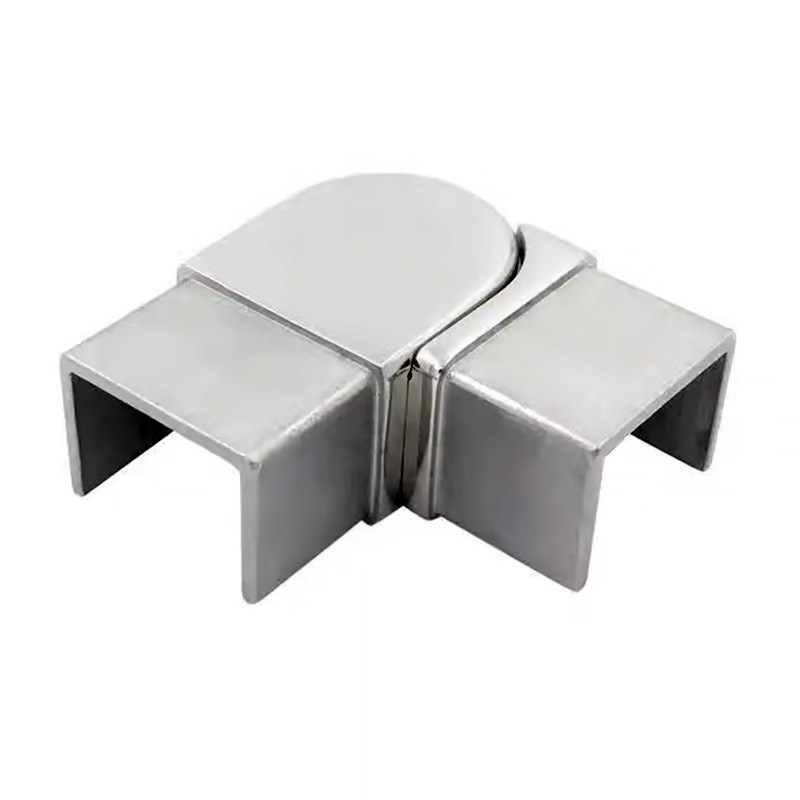

Adjustable 90° Horizontal - 1x1" square Caprail
Fixed 180° - 1x1" square Caprail

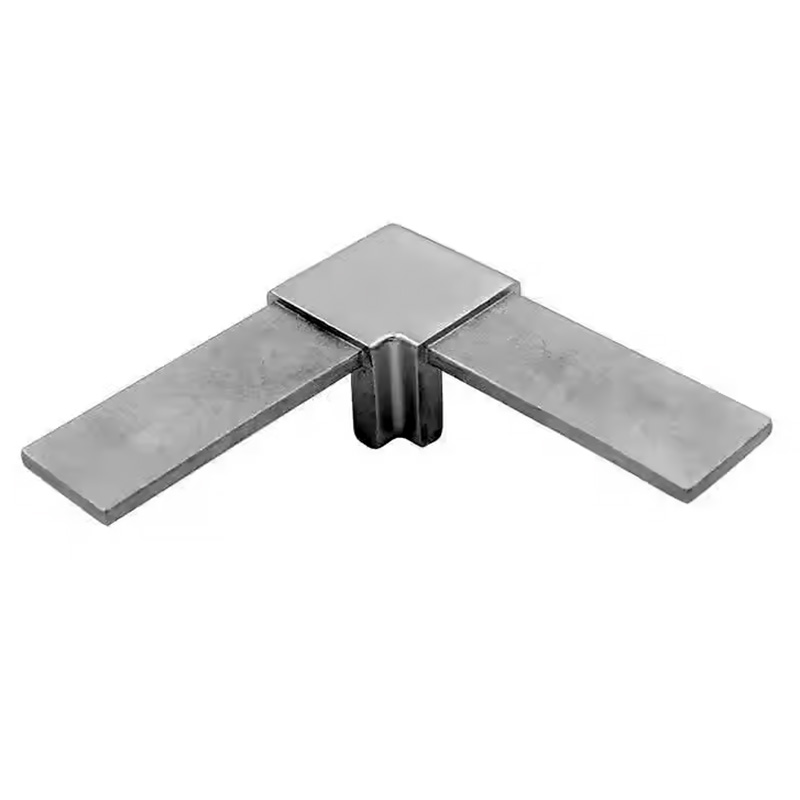

Fixed 90° Horizontal- 1x1" square Caprail

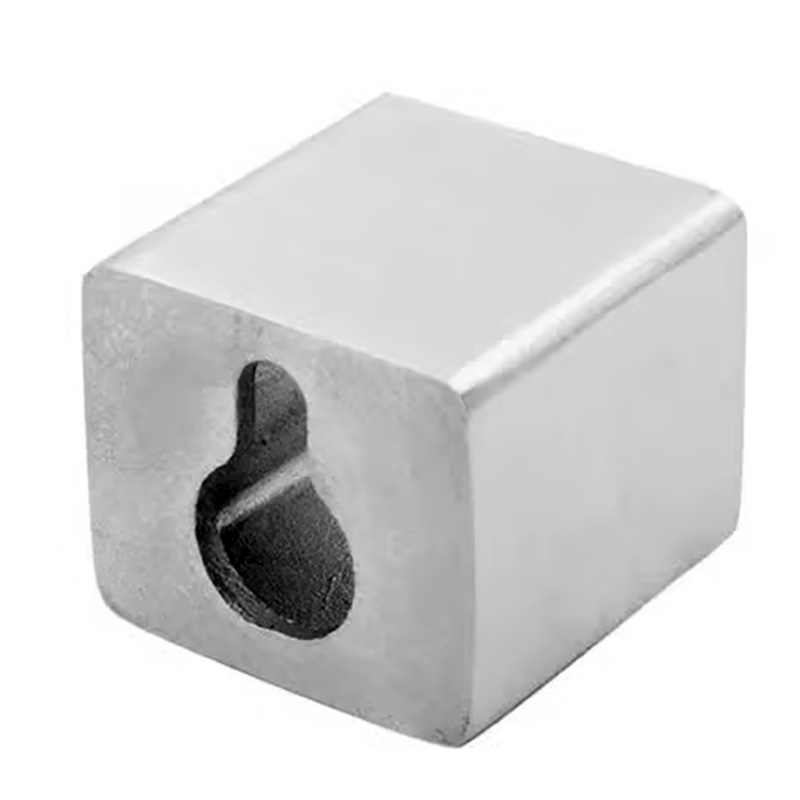

Wall Mount Flange- 1x1" square Caprail with hole
Wall Mount Flange- 1x1" square Caprail

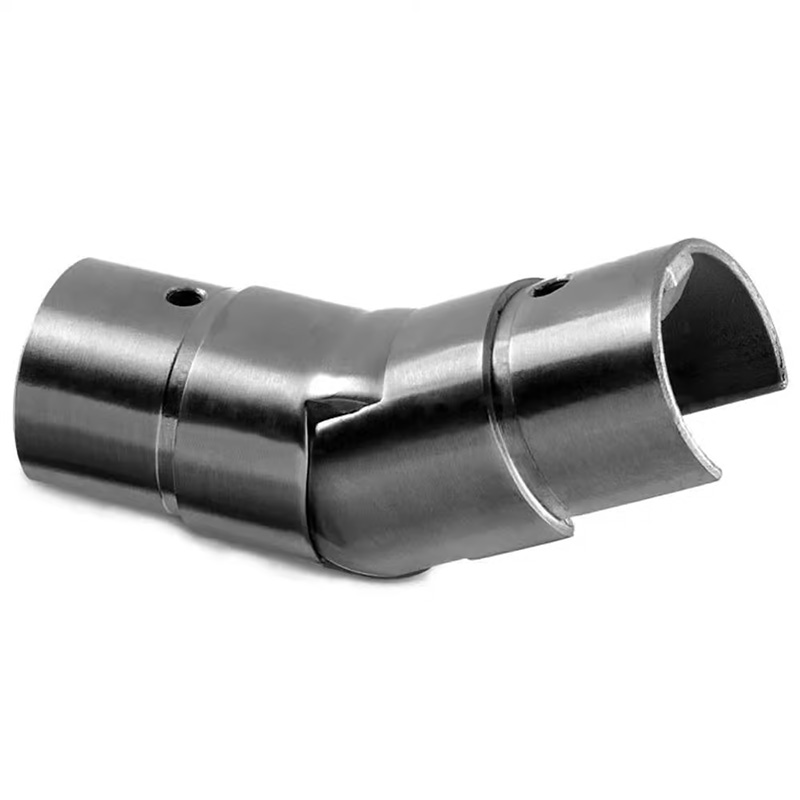

Adjustable upward - 42.4mm round Caprail

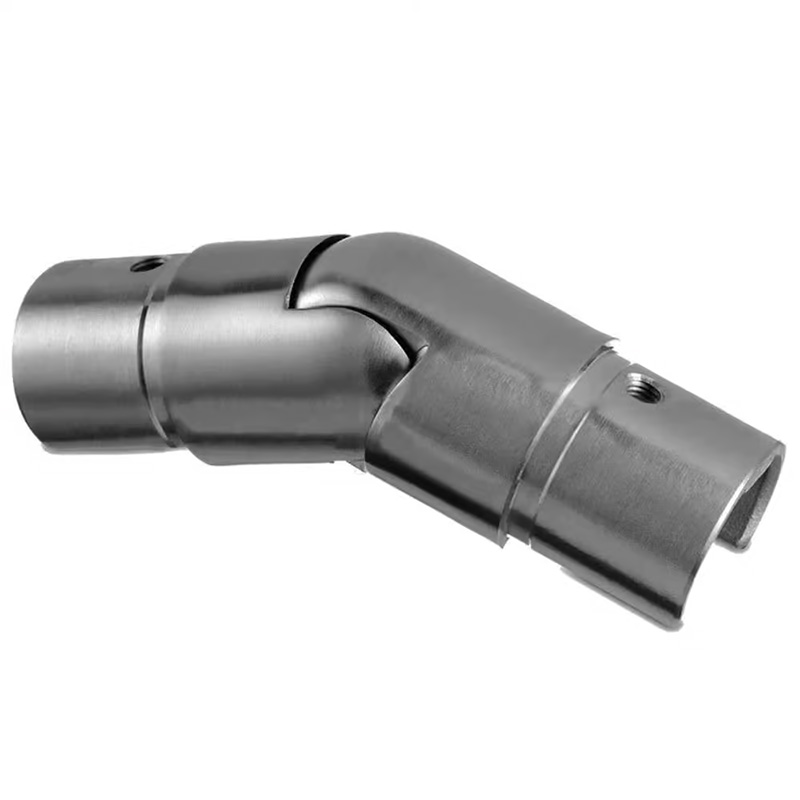

Adjustable downward - 42.4mm round Caprail

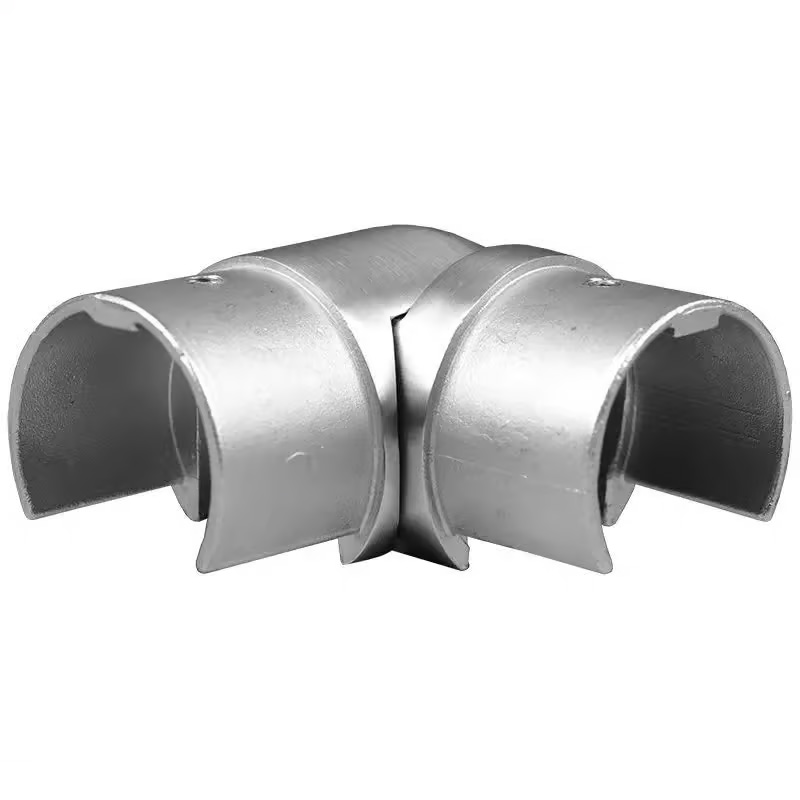

Adjustable 90° Horizontal - 42.4mm round Caprail
Fixed 90° Horizontal - 42.4mm round Caprail
Fixed 90° Vertical - 42.4mm round Caprail
Fixed 180°- 42.4mm round Caprail
Side Mount Hand Rail
Side Hand Rail
The side rail hardware and railing add style and safety to your stairs. Handrails are composed of high gauge 316 Stainless Steel alloy (corrosion resistant). The side rail and mounting brackets are available in stainless or matte black finish.
Mounting Brackets
Side rail mounting brackets come with flat or curved rail attaching brackets.
Side rail mounting brackets available in glass mount and wall mount. Multiple hand rail connectors available.
Hand Rail Size & Styles
Round and square rail is attached by means of the mounting bracket. Rail requires end caps (sold seperatly).
- 1-1/2" (38.1mm) diameter round rail, 19' lengths
- square rail 1.57" (40mm), 19' lengths
- rectangular rail 2"x1" (50x25mm), 19' lengths
- custom cutting and fabrication available
Square Handrail on Side Rail Bracket (glass mount)
Side Rail Bracket (glass mount)
Round Handrail on Side Rail Bracket (glass mount)
Wall Mount Side Rail with Curved Saddle
Wall Mount Side Rail with Flat Saddle
Square Handrail
Round Handrail
Rectangular Handrail
Additional Side Connectors
Adjustable flush angle-right - 1-1/2" (38.1mm) Round Handrail
Adjustable flush angle-left - 1-1/2" (38.1mm) Round Handrail
Fixed 135° - 1-1/2" (38.1mm) Round Handrail

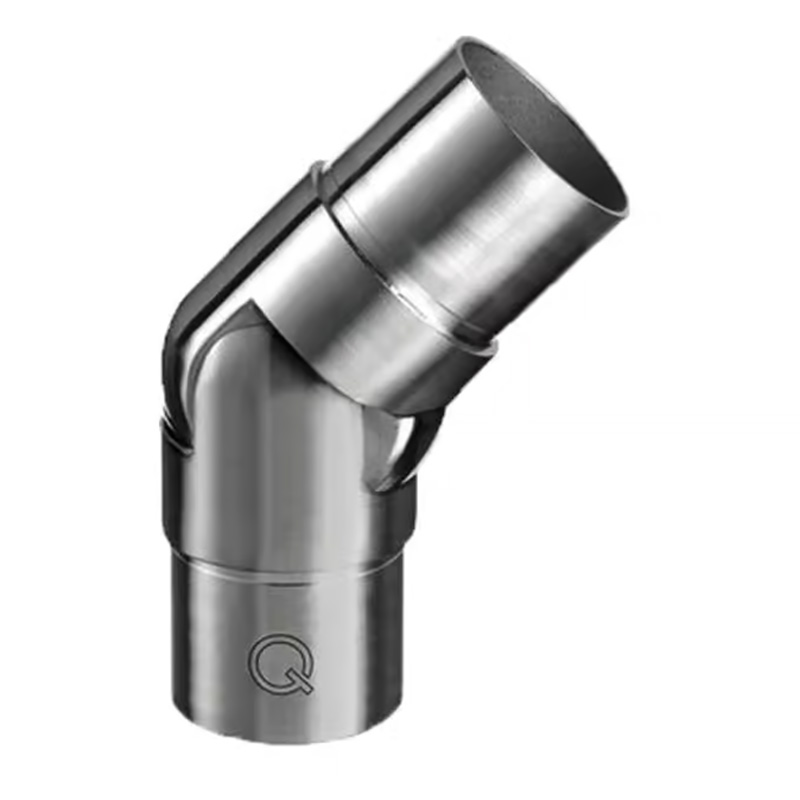

Adjustable 90° - 1-1/2" (38.1mm) Round Handrail

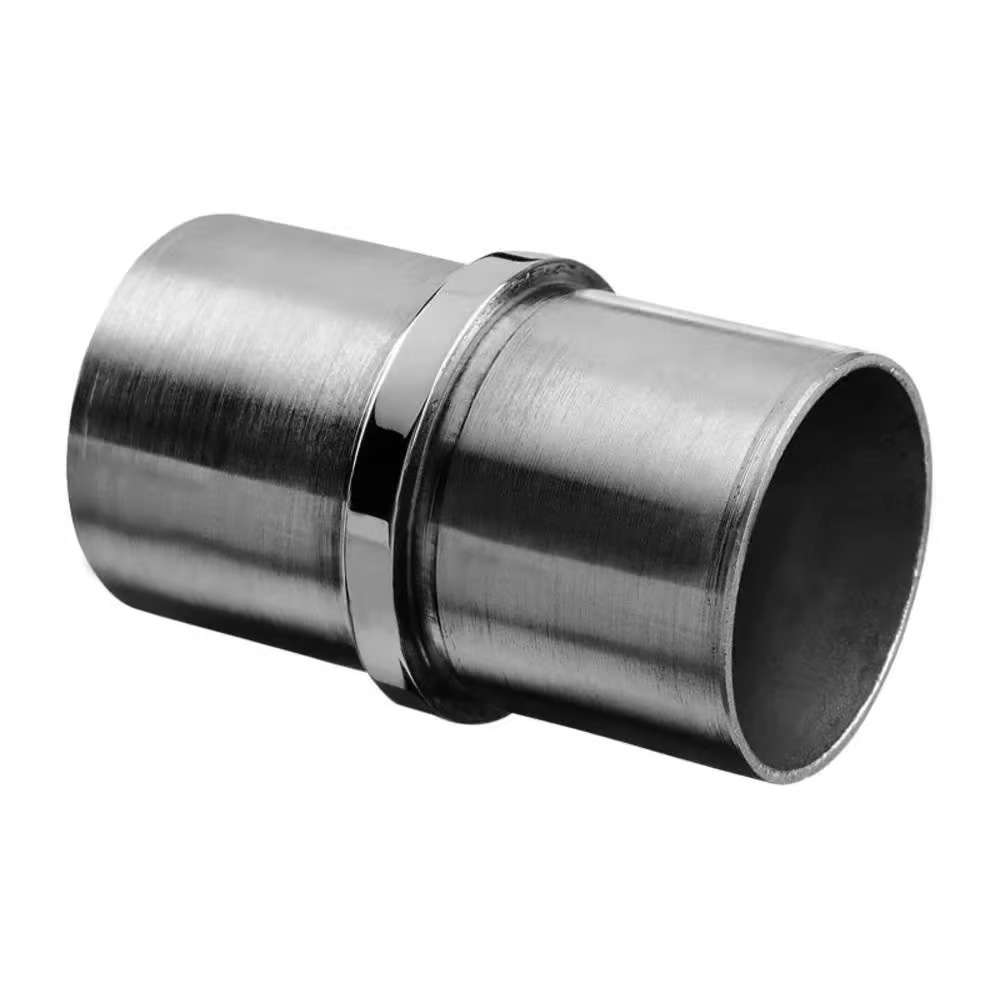

Fixed 180° - 1-1/2" (38.1mm) Round Handrail

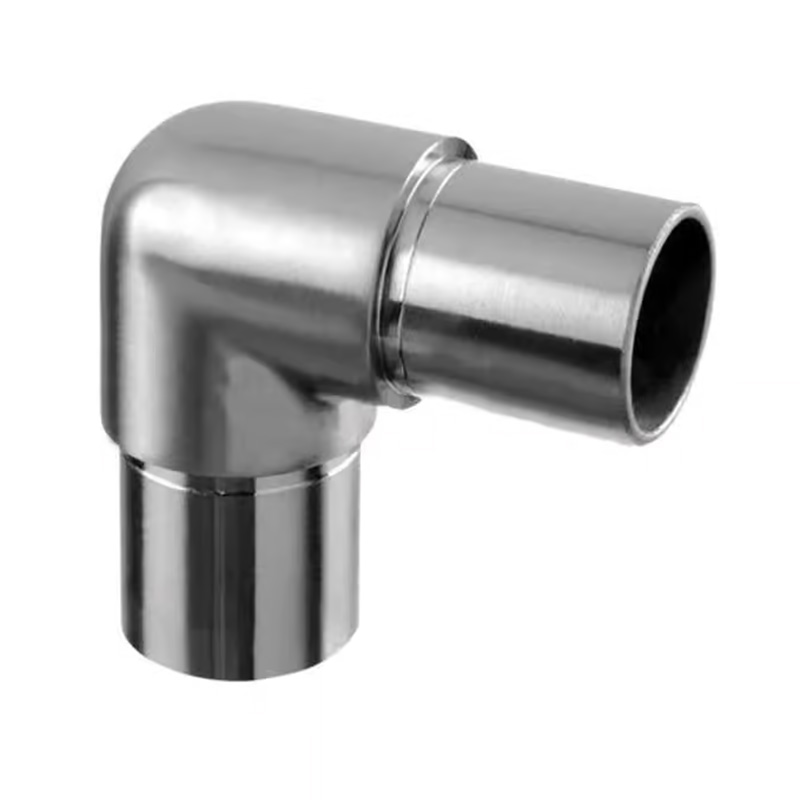

Fixed 90° - 1-1/2" (38.1mm) Round Handrail
Adjustable 90° - 40mm Square Handrail
Fixed 90° - 40mm Square Handrail
Fixed 180° Horizontal - 40mm Square Handrail
Adjustable 90° Horizontal - 2x1" Handrail
Adjustable 90° Vertical - 2x1" Handrail
Fixed 90° Vertical- 2x1" handrail
Fixed 90° Horizontal- 2x1" handrail
Fixed 180°- 2x1" handrail
End Caps - brushes stainless or matte black
1.57" (40mm) Square Caprail
1" (25.4mm) Square Caprail
1.67" (42.4mm) Round Caprail
1.5" (38.1mm) Round Handrail
1.57" (40mm) Square Handrail
2x1" Rectangular Handrail
