Highpoint LED Rail Lights
Installation
Installing Highpoint Deck Lights is made simple by following our step by step instructions. Installing our lights will require the use of these basic tools which may differ depending on the fixture chosen; drill, 3/8” drill bit, 3” forstner/hole saw, tape measure, writing instrument, silicone filled wire nuts, low voltage wire, Flathead and Philips screw drivers, insulated wire tacks. If you have any questions during your install, please do not hesitate to contact Highpoint Deck Lights at: 1 (888) 582-5850.JTD Rail Light - 1.5 Watt LED Panel w/ AG

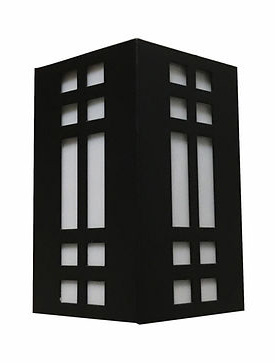

![Highpoint JTD rail light in textured black.](images/lighting/highpoint/rail_light-JTD-lg.jpg)
Textured Black
HP-504P-PCB-UL

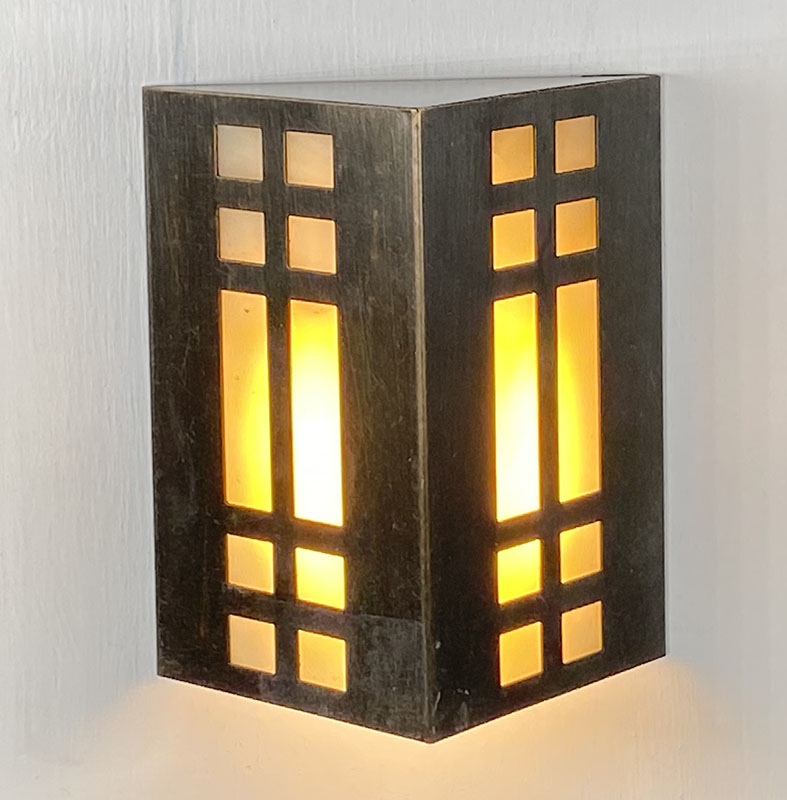

![Highpoint JTD rail light in bronze, on.](images/lighting/highpoint/HP504PMBR-JTD-bronze-on.jpg)
Bronze
HP-504P-MBR-UL
Available Colours:
- Textured Black
- Bronze
Brightness:
- 145 Lumens
Packaging:
- Available as single light
- 8 piece Kit option includes:
- 8 LED lights
- 36 watt transformer with timer
- 100' of wire
- 16 connectors
- 16 piece Kit option includes:
- 16 LED lights
- 60 watt transformer with timer
- 200' of wire
- 32 connectors

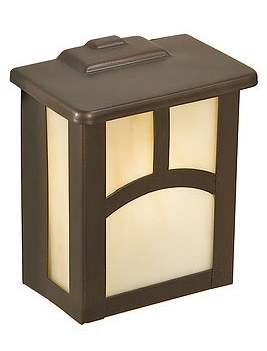

Moab Rail Light - 1.5 Watt LED Panel w/ AG
![Highpoint, MOAB rail light in bronze](images/lighting/highpoint/rail_light-MOAB-lg.jpg)
Antique Bronze
HP-512P-MBR-UL
![Highpoint, MOAB rail light in black](images/lighting/highpoint/rail_light-MOAB-black.jpg)
Black
HP-512P-PCB-UL
Available Colours:
- Black
- Antique Bronze
Brightness:
- 145 Lumens
Packaging:
- Available as single light
- 8 piece Kit option includes:
- 8 LED lights
- 36 watt transformer with timer
- 100' of wire
- 16 connectors
- 16 piece Kit option includes:
- 16 LED lights
- 60 watt transformer with timer
- 200' of wire
- 32 connectors
Lake Powell Rail Light - 1.5 Watt LED Panel w/ AG
![Highpoint, Lake Powell Rail Light, Textured Black](images/lighting/highpoint/rail_light-Lake_Powell-black-lit.jpg)
Textured Black
HP-535P-PCB-UL

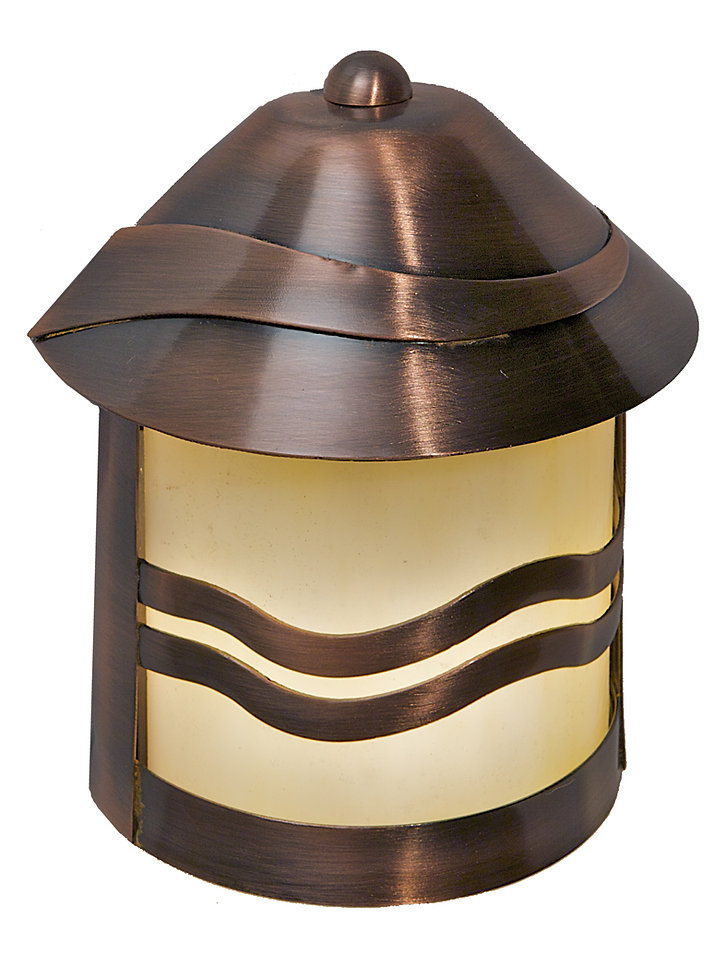

![Highpoint, Lake Powell Rail Light, Antique Bronze](images/lighting/highpoint/rail_light-Lake_Powell-antique-bronze-lit.jpg)
Antique Bronze
HP-535P-MBR-UL
Available Colours:
- Textured Black
- Antique Bronze
Brightness:
- 145 Lumens
Packaging:
- Available as single light
- 8 piece Kit option includes:
- 8 LED lights
- 36 watt transformer with timer
- 100' of wire
- 16 connectors
- 16 piece Kit option includes:
- 16 LED lights
- 60 watt transformer with timer
- 200' of wire
- 32 connectors
Clear Creek Rail Light - 1.5 Watt LED Panel w/ AG

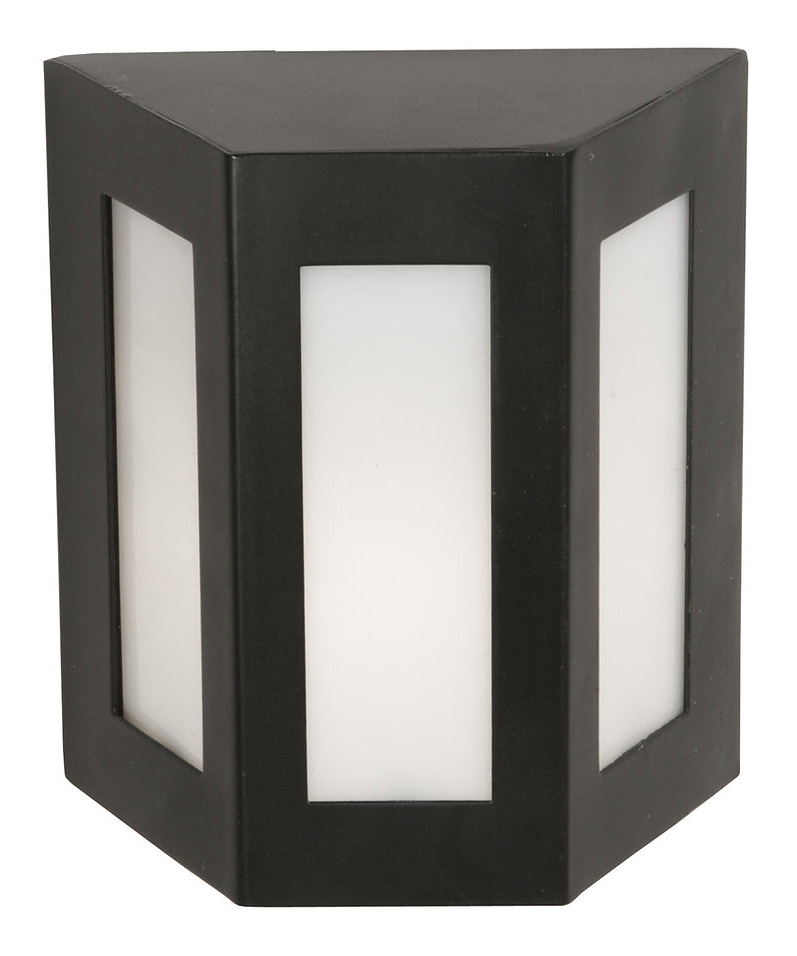

![Highpoint, Clear Creek Rail Light, Textured Black](images/lighting/highpoint/rail_light-Clear_Creek-brushed-textured-blk.jpg)
Textured Black
HP-560P-PCB-UL

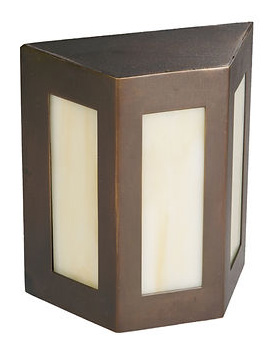

![Highpoint, Clear Creek Rail Light, Antique Bronze](images/lighting/highpoint/rail_light-Clear_Creek-bronze-lg.jpg)
Antique Bronze
HP-560P-MBR-UL

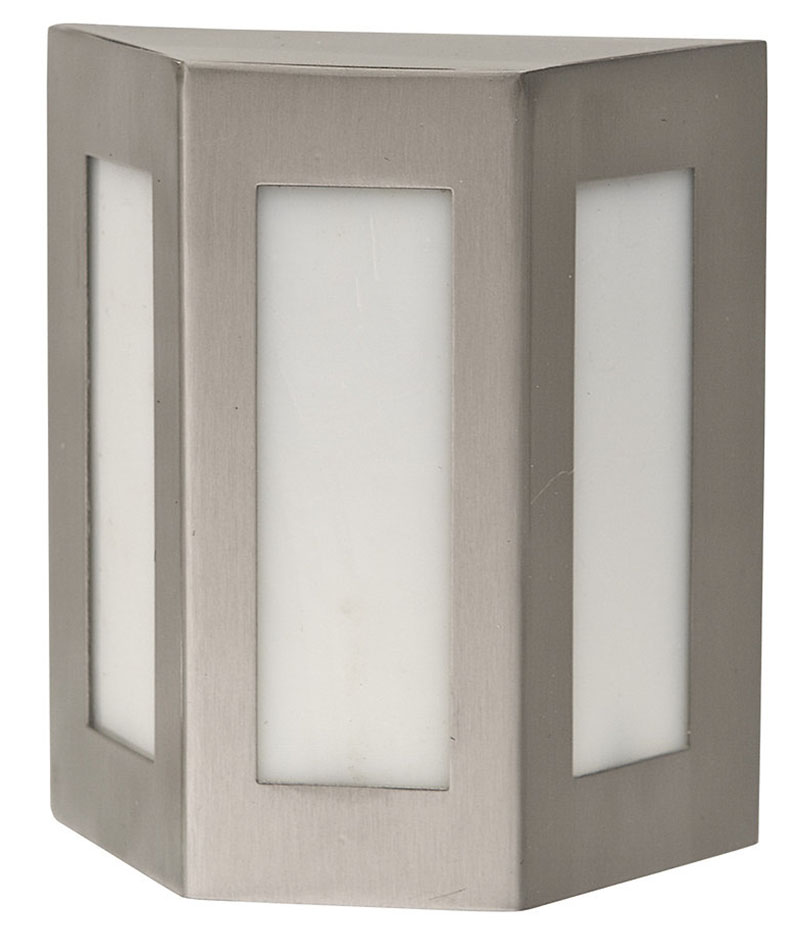

![Highpoint, Clear Creek Rail Light, Brushed Stainless](images/lighting/highpoint/rail_light-Clear_Creek-brushed-stainless.jpg)
Brushed Stainless
HP-560P-BS-UL
Brightness:
- 145 Lumens
Packaging:
- Available as single light
- 8 LED lights
- 36 watt transformer with timer
- 100' of wire
- 16 connectors
- 16 piece Kit option includes:
- 16 LED lights
- 60 watt transformer with timer
- 200' of wire
- 32 connectors
Berkley Rail Light - 1.5 Watt LED Panel w/ AG

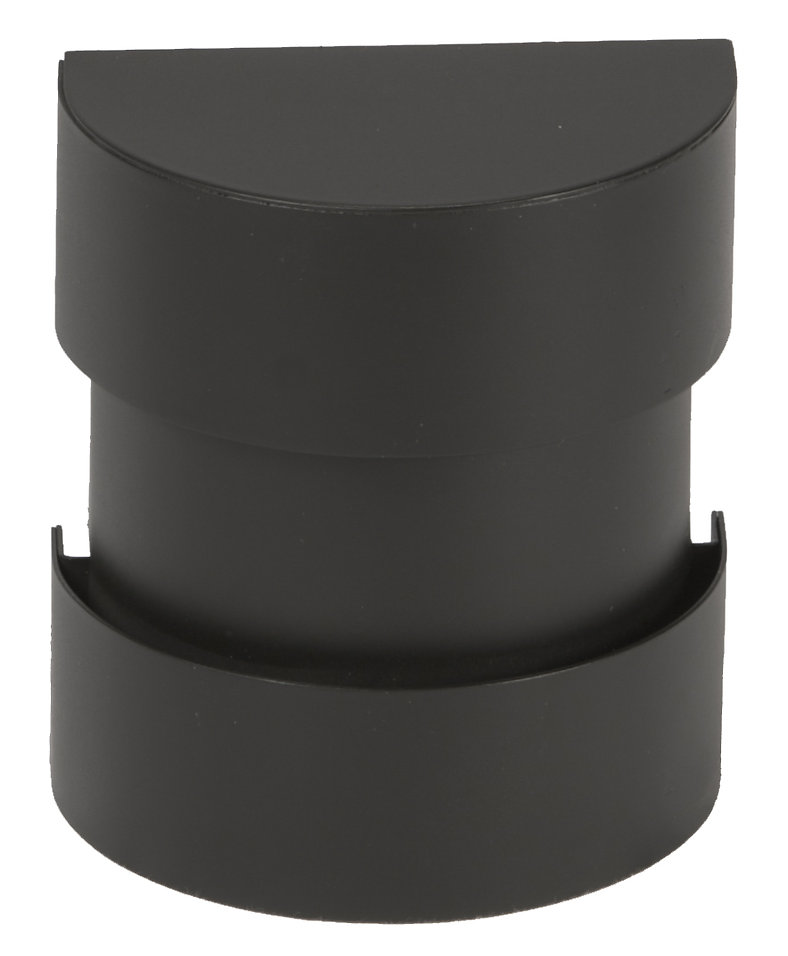

![Highpoint, Berkley Rail Light, Textured Black](images/lighting/highpoint/rail_light-Berkely-Textured-Black.jpg)
Textured Black
HP-570P-PCB-UL

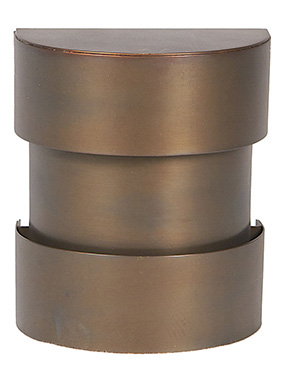

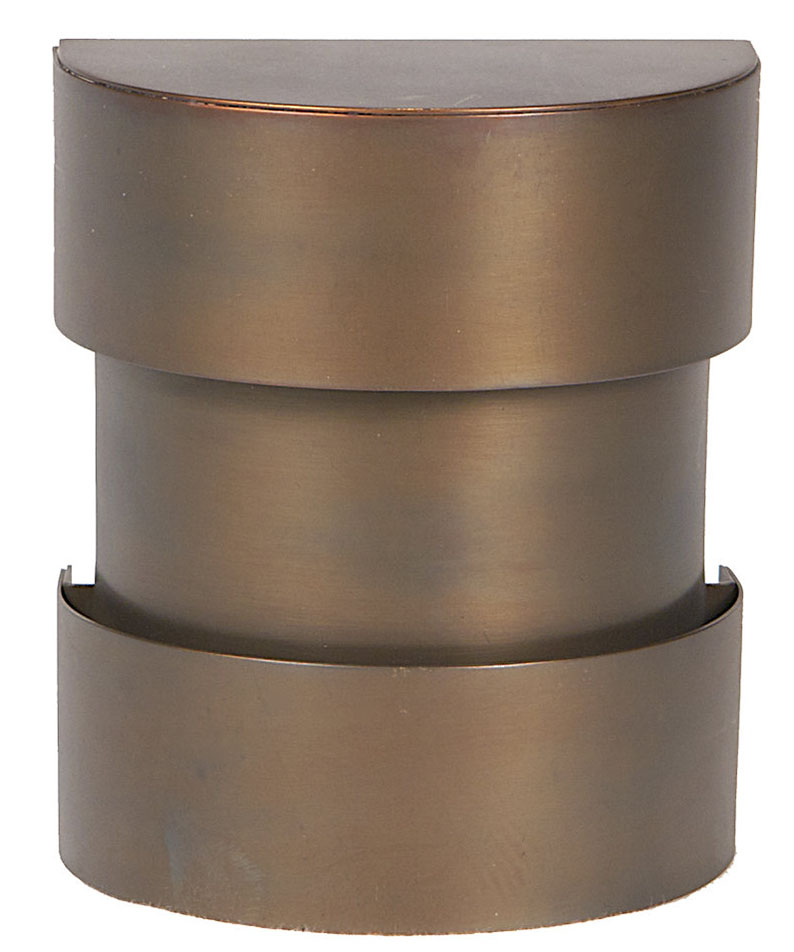

![Highpoint, Berkley Rail Light, Antique Bronze](images/lighting/highpoint/rail_light-Berkely-Bronze.jpg)
Antique Bronze
HP-570P-MBR-UL

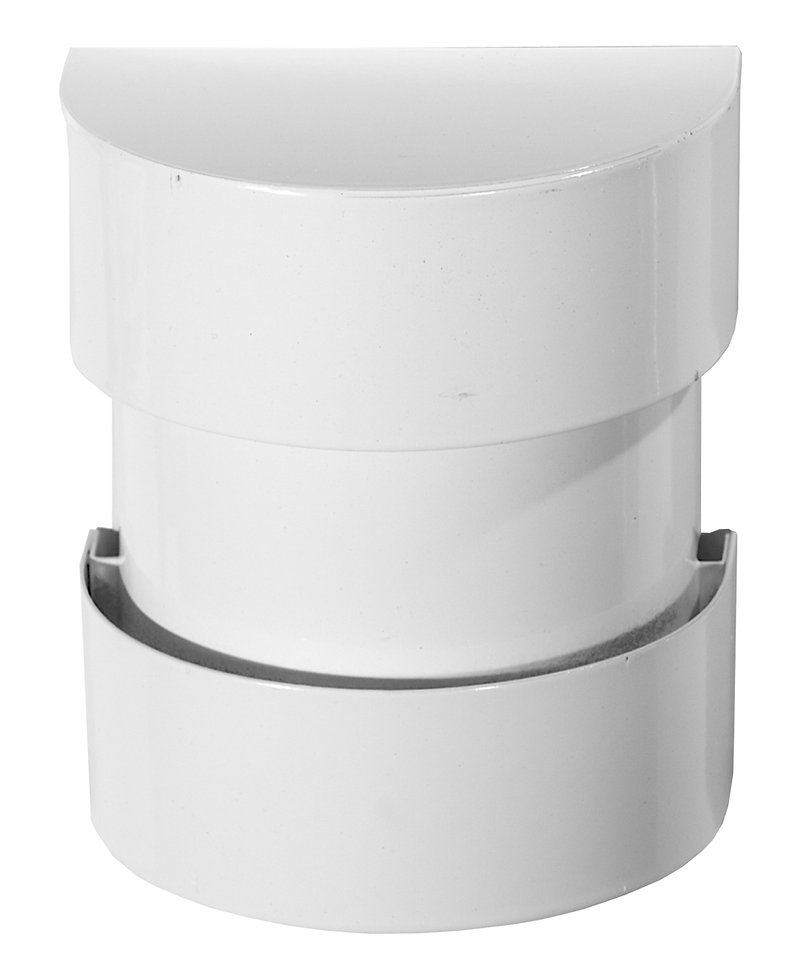

![Highpoint, Berkley Rail Light, Brushed Stainless](images/lighting/highpoint/rail_light-Berkely-white.jpg)
Powder Coat White
HP-570P-PCW-UL
Brightness:
- 145 Lumens
Packaging:
- Available as single light
- 8 LED lights
- 36 watt transformer with timer
- 100' of wire
- 16 connectors
- 16 piece Kit option includes:
- 16 LED lights
- 60 watt transformer with timer
- 200' of wire
- 32 connectors
Estes Rail Light - 1.5 Watt LED Panel w/ AG

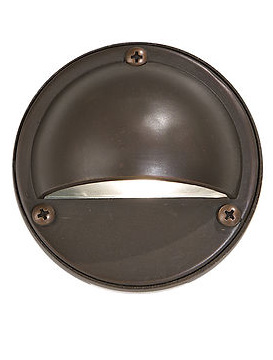

![Highpoint, Estes Rail Light, Textured Black](images/lighting/highpoint/rail_light-Estes-black.jpg)
Textured Black
HP-571P-PCB-UL
![Highpoint, Estes Rail Light, Antique Bronze](images/lighting/highpoint/rail_light-Estes-bronze-lit.jpg)
Antique Bronze Cast Brass
HP-571P-MBR-UL
![Highpoint, Estes Rail Light, in white](images/lighting/highpoint/rail_light-Estes-white.jpg)
Powder Coat White
HP-571P-PCW-UL
Available Colours:
- Textured Black
- Antique Bronze Cast Brass
- Powder Coat White
Specification Cut Sheet
Brightness:
- 145 Lumens
Packaging:
- Available as single light
- 8 LED lights
- 36 watt transformer with timer
- 100' of wire
- 16 connectors
- 16 piece Kit option includes:
- 16 LED lights
- 60 watt transformer with timer
- 200' of wire
- 32 connectors
